2007 KTM 690 SMC Lighting System OEM Parts Diagram

Submodel 690 Supermoto Black Chassis - 2007

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Lighting System

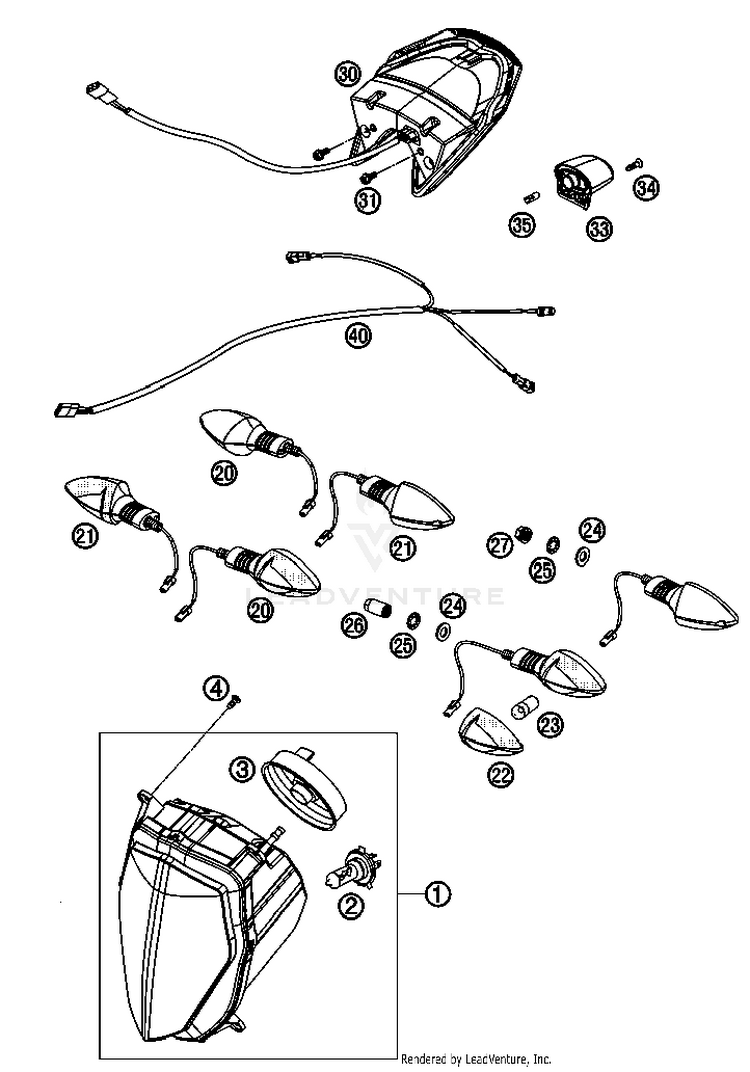

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175014001000HEAD LIGHT LC4 07 | 07$194.69$165.49Usually ships in 7-10 business days
257111038000BULB H4 12V 60/55W (P43T) | P43T$51.25$43.564 In-Stock
375014001050RUBBER CAP FOR HEAD LIGHT | 07$0.00$0.00Not Shipping
40081050121

(replaces part #
0016050121)

EJOT PT screw K50x12$2.99$2.5410+ In-Stock
2060114025000FLASHER CPL.FRONT L/S REAR R/S$35.30$30.0010+ In-Stock
2160114026000FLASHER CPL.FRONT R/S REAR L/S$35.30$30.0010+ In-Stock
2260114028000FLASHER LENS L/S R/S TRANSP.06 | 06$6.48$5.5110+ In-Stock
2360114027000BULB 12V ORANGE (RY10W) | RY10W$7.80$6.6310+ In-Stock
240433100003WASHER 18x10,5x1,6$1.99$1.6910+ In-Stock
250797100003LOCK WASHER DIN6797-J10,5 ZI$1.99$1.6910+ In-Stock
2675014030000FLASHER NUT M10X1,25 WS12$5.24$4.72Usually ships in 7-10 business days
2758414030000HH COLLAR NUT M10X1,25 WS=13 | WS=13$2.99$2.5410+ In-Stock
3075014140000REAR LIGHT LED SMOKECOLORED 07 | 07$148.38$126.12Usually ships in 7-10 business days
310025050126

(replaces part #
0015050123)

HH collar screw M5x12 TX30 | WS=8$3.99$3.3910+ In-Stock
3375014047100

(replaces part #
75014047000)

Number plate light | 07$12.20$10.3710+ In-Stock
340017050181SCREW FOR PLASTIC D=5X18$1.99$1.69Not Shipping
3549011435100BULB 12V 5W (W2,1X9,5D) PHIL. | W2,1X9,5D$6.15$5.2310+ In-Stock
4075011076000WIRING HARNESS REAR 07 | 07$34.75$29.59Usually ships in 7-10 business days
