2009 KTM 65 XC Carburetor OEM Parts Diagram

Submodel 65 XC Engine - 2009

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

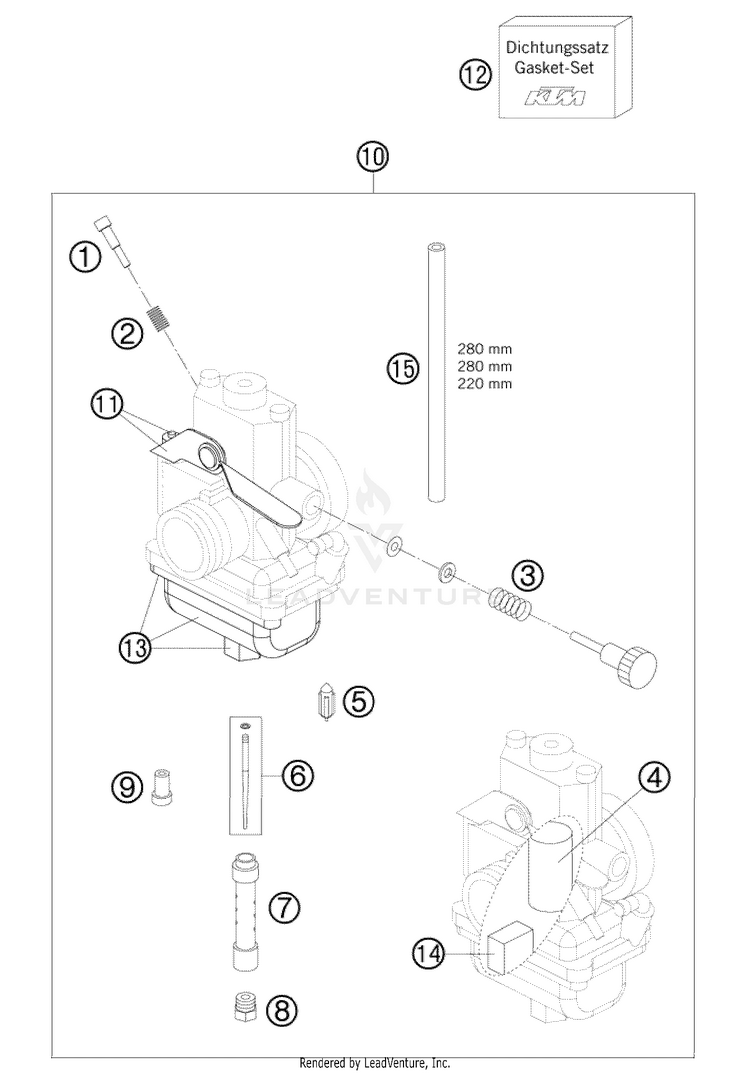

Carburetor

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146131017000ADJUSTING SCREW MIKUNI$11.65$9.9010+ In-Stock
245031015200SPRING IDLE ADJUST SCREW$4.99$4.2410+ In-Stock
355431017010

(replaces part #
45031015000)

COMPRESSION SPRING ADJUSTER$6.15$5.2310+ In-Stock
446231035000THROTTLE VALVE MIKUNI 2.5$159.27$135.3810+ In-Stock
546231020100

(replaces part #
46231020000)

NEEDLE VALVE CPL. 2.5$64.56$54.8810+ In-Stock
646231034000JET NEEDLE MIKUNI 5IPL43-2$21.22$18.0410+ In-Stock
746231034100MAIN JET HOLDER MIKUNI$39.92$33.9310+ In-Stock
845031023210MAIN JET 210$10.44$8.8710+ In-Stock
945031007020IDLING JET 20 MIKUNI$11.65$9.9010+ In-Stock
1046231001144

(replaces part #
46231001044)

CARBURETOR 65 SX 2011 | 2009-$489.328 In-Stock
1146231048044CHOKE + LEVER CPL.$134.52$114.3410+ In-Stock
1246231099000GASKET SET MIKUNI$51.80$44.0310+ In-Stock
1346231011044FLOAT BODY + SCREW + GASKET$82.82$70.406 In-Stock
1446231009044FLOAT + PIN$60.38$51.3210+ In-Stock
1552031137001PVC-HOSE 3X5MM$6.15$5.2310+ In-Stock
