2009 KTM 85 XC Monoshock Disassembled OEM Parts Diagram

Submodel 85 XC Chassis - 2009

Shop Aftermarket Parts

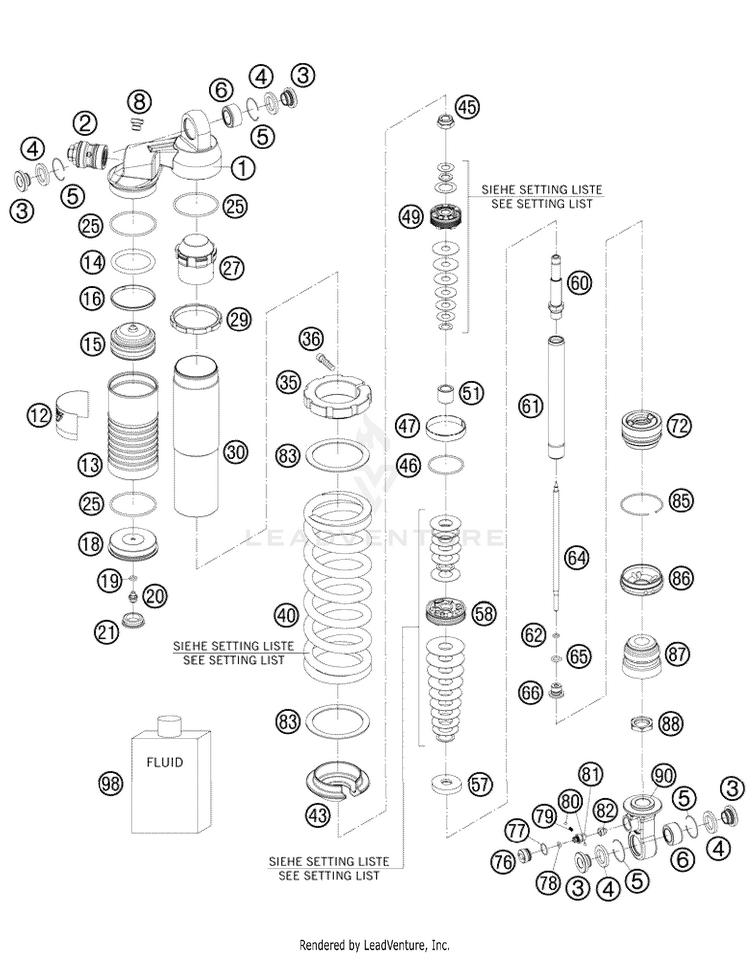

Monoshock Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146180348SHOCK ABSORBER TOP H40 135DEG.$261.42$222.21Usually ships in 7-10 business days
250180213S10DCC-COMPR.DAMP.CONTROL CPL. 07 | 07$130.09$110.58Not Shipping
346180007Distance bush 12x15/18/24,5x10,5-$10.2410+ In-Stock
446180003Seal ring 19,5x26x3$6.59$5.6010+ In-Stock
550180168Round-wire snap ring 25x1$1.20$1.0210+ In-Stock
650180005Ball joint bearing 15x25x13$34.53$29.3510+ In-Stock
850180095HS cylinder-head screw R1/8 l8$2.85$2.4210+ In-Stock
1252000086

(replaces part #
52000014)

Sticker WP clear 35x55$4.19$3.77Usually ships in 7-10 business days
1350180522Reservoir 52x100 M54x1 black$141.29$120.10Usually ships in 7-10 business days
1446180014O-ring 41x5 Viton75$2.41$2.0510+ In-Stock
1546180002Piston 52mm reservoir$51.36$43.66Usually ships in 7-10 business days
1646180015Pistonring 47,5x50,5x3,9$11.76$10.007 In-Stock
1850180344RESERVOIR CAP D=58$141.74$120.48Not Shipping
19S208600003000FB

(replaces part #
46810893)

O-ring 5,28x1,78 HNBR70 red$0.76$0.6510+ In-Stock
2036120151ST

(replaces part #
36120151)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
2146811208Rubber cap do not open 22x5,5 NBR$3.62$3.0810+ In-Stock
2546810016O-ring 48x2 NBR70 siliconized$1.20$1.0210+ In-Stock
2746180340SLEEVE D=48-$73.02Usually ships in 7-10 business days
2946180352LOCK WASHER M52X1,5$52.57$44.68Usually ships in 7-10 business days
3046180345TUBE M52X1,5-$112.69Usually ships in 7-10 business days
3546180353SPRING RETAINER M52X1,5$148.66$126.36Usually ships in 7-10 business days
360912050253AH SCREW DIN0912-M 5X25$1.20$1.0210+ In-Stock
4091010201Mainspring (59) 45-215 damper white | (As required)$153.99$130.8910+ In-Stock
4091010272SPRING 215 30 N/MM D=9,00 ORAN | (As required)$161.39$137.18Usually ships in 7-10 business days
4091010274SSPRING 215 40 N/MM D=9,50 ORG | (As required)$161.39$137.181 In-Stock
4091010273Mainspring (59) 35-215 damper orange$177.53$150.90Usually ships in 7-10 business days
4346180349Spring retainer 28x56x15$36.29$30.85Usually ships in 7-10 business days
4546180356PISTON ROD NUT M10X1$9.12$8.21Usually ships in 7-10 business days
4646810035O-ring 37x,82x1,78 Viton70 green$2.41$2.055 In-Stock
4746811206Piston ring 43,95x45,95x8$20.89$17.765 In-Stock
4914460016Piston 10,05x35,5x13,7 3,5/5,5$68.41$58.15Usually ships in 7-10 business days
5146180339SEPARATION BUSH 17X12X18$33.89$28.81Usually ships in 7-10 business days
5746180179REBOUND DISC H=0 | (As required)-$60.70Usually ships in 7-10 business days
5746180337Rebound disc 12x34x7 h4$38.49$32.72Usually ships in 7-10 business days
5846180441PISTON 5X4,5X/6X6$125.57$106.73Usually ships in 7-10 business days
6046180343TAP PISTON ROD D=13, 5-$44.72Usually ships in 7-10 business days
6146180342SSPINDEL D=18 LC=159 CPL.$175.50$149.18Usually ships in 7-10 business days
6250180397O-ring 5x1,5 Viton70$1.04$0.94Usually ships in 7-10 business days
6446180346NEEDLE REBOUND L=169$14.49$12.32Usually ships in 7-10 business days
6546180018O-RING NBR 7,5X2$1.99$1.79Usually ships in 7-10 business days
6646180350NEEDLE GUIDE$10.39$8.83Usually ships in 7-10 business days
72S614620000S0100

(replaces part #
46180669S)

Sealholder 46x28 cpl. | 07$83.81$71.2410+ In-Stock
7646180005

(replaces part #
46180355)

Screw cap M16x1$33.09$28.13Not Shipping
7746180013O-ring 12x1 NBR70$2.41$2.17Usually ships in 7-10 business days
7850180222O-ring 4x1,5 NBR70$1.20$1.0210+ In-Stock
7948600028Spring (1,7) l7,9$3.62$3.0810+ In-Stock
8040540603Steel ball d3$1.20$1.0210+ In-Stock
8146180006Adjustment screw slot rebound$26.50$22.52Usually ships in 7-10 business days
8246180016Adjustment screw slot rebound$45.99$39.09Usually ships in 7-10 business days
8350180410Washer 58,6x73,6x1,5$4.83$4.114 In-Stock
8546810010Round-wire snap ring 49x1,8$3.62$3.0810+ In-Stock
8646180338Cover 46,12x6,2 h15,7$40.58$34.49Usually ships in 7-10 business days
8750180276Rubber pad 17,2x45,2x40 black$9.89$8.4110+ In-Stock
8850180283HH locking nut M18x1 h5 WAF24$14.29$12.15Not Shipping
9046180347SHOCK ABSORBER BOT. KGW L=54,5$247.39$210.28Usually ships in 7-10 business days
9850180751S1

(replaces part #
50180342S1)

SHOCK ABSORBER FLUID 5 LT | '03$175.99$149.596 In-Stock
