2011 KTM 150 XC Tank, Seat, Cover OEM Parts Diagram

Submodel 150 XC Chassis - 2011

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

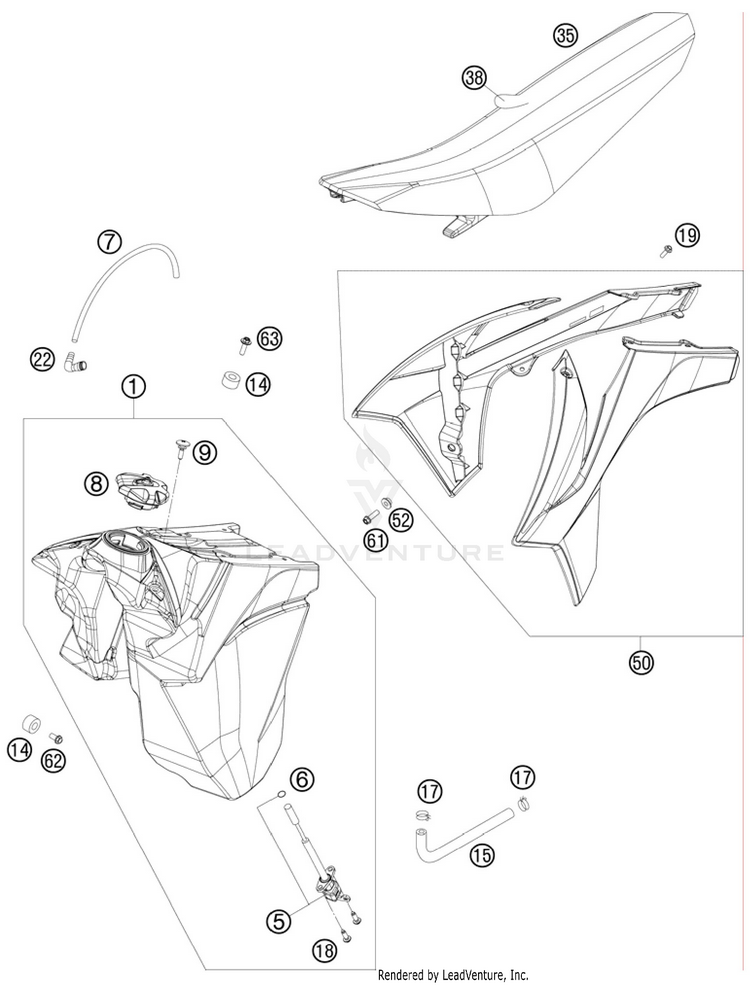

Tank, Seat, Cover

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15480751313399

(replaces part #
5480751303399)

FUEL TANK CPL. 10L 2014$378.50$321.729 In-Stock
554807004000GAS COCK ON/OFF/RES 03 | 03$38.49$32.7210+ In-Stock
60770110021O-RING 11X2 VITON$2.99$2.5410+ In-Stock
778007100270

(replaces part #
78007000270)

Vent hose 5.6 x 10 x 270$3.99$3.3910+ In-Stock
87810700804404

(replaces part #
78007008044X4)

Tank plug cpl. 14$34.20$29.0710+ In-Stock
979107011000

(replaces part #
50307011000)

Seat holder screw$3.99$3.3910+ In-Stock
1450307014000TANK ROLLER 12X26X12 '98 | '98$12.97$11.0210+ In-Stock
1550307016000FUEL PREFORMED HOSE SX 2001 | 2001$10.44$8.8710+ In-Stock
1758031005000CLAMP YDNAC 10128 12MM$3.99$3.3910+ In-Stock
180017060205

(replaces part #
0017060203)

SCREW FOR PLASTIC K60X20 SW6 | WS=6$2.99$2.9210+ In-Stock
190017060206

(replaces part #
0017060204)

SCREW F. PLASTIC K60X20AL SW6 | WS=6$3.99$3.3910+ In-Stock
2251030022000ANGLE PIECE 90 DEGREE M10X1$6.15$5.2310+ In-Stock
3577207040200

(replaces part #
77207040000)

SEAT 2014$166.20$141.2710+ In-Stock
3877207040050SEAT COVER$81.28$69.097 In-Stock
507720805400004ASPOILER KIT ORANGE SX/XC 2011 | 2011$82.95$70.51Not Shipping
5279608152000

(replaces part #
50308052000)

Collar bushing 6x11x16x5áMM$2.99$2.5410+ In-Stock
610025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
620025060126HH collar screw M6x12 TX30 | TX30$3.99$3.3910+ In-Stock
630024060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
