2011 KTM 250 SX Exhaust System OEM Parts Diagram

Submodel 250 SX Engine - 2011

Shop Aftermarket Parts

Exhaust System

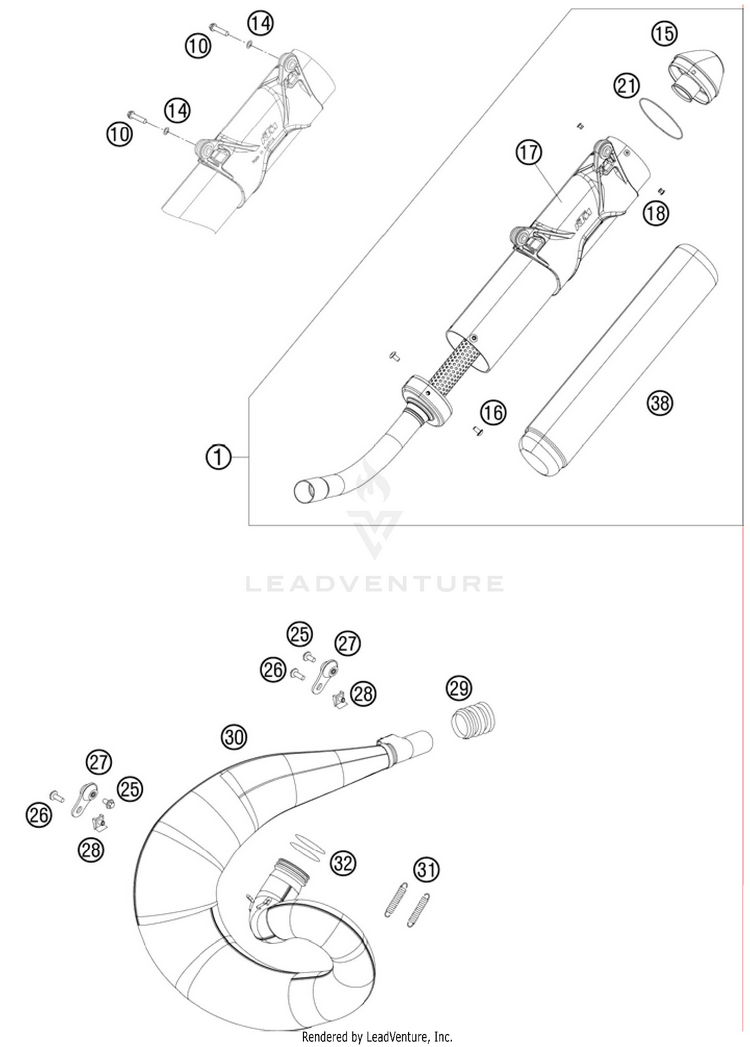

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
154805079200SILENCER 250-300 SX$365.39$310.58Not Shipping
100025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
140137060003spring washer DIN 137 B - 6$2.99$2.5410+ In-Stock
1554805083260ENDCAP CPL.$99.10$84.24Usually ships in 7-10 business days
1658605083010SCREW TORX M5X10 05 | 05$2.99$2.8310+ In-Stock
1754805179085SILENCER HOUS. CPL. W. HANGING$95.01$80.76Usually ships in 7-10 business days
180011480800DUMMY RIVET 4,8X 8 NIRO$3.99$3.3910+ In-Stock
210770740015O-RING 74,00X1,50 FKM 75SH$4.99$4.2410+ In-Stock
250024060106HH COLLAR SCREW M6X10 TX30 | TX30$3.99$3.3910+ In-Stock
260024060156HH collar screw M6x15 TX30 | TX30$3.99$3.3910+ In-Stock
2750305012000SWINGELEMENT FOR EXHAUST PIPE$23.42$19.9110+ In-Stock
2854603048100clip nut M6$4.99$4.2410+ In-Stock
2950205057000SILICON SLEEVE D=29/31MM$38.71$32.9010+ In-Stock
3054805107000EXHAUST MANIFOLD$631.72$536.963 In-Stock
31A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
320770440030O-RING 44,00X3,00 VITON$4.99$4.2410+ In-Stock
3854805078265ROCK WOOL 265G$57.63$48.997 In-Stock
