2011 KTM 50 SX MINI Front Fork, Triple Clamp OEM Parts Diagram

Submodel 50 SX Mini Chassis - 2011

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Fork, Triple Clamp

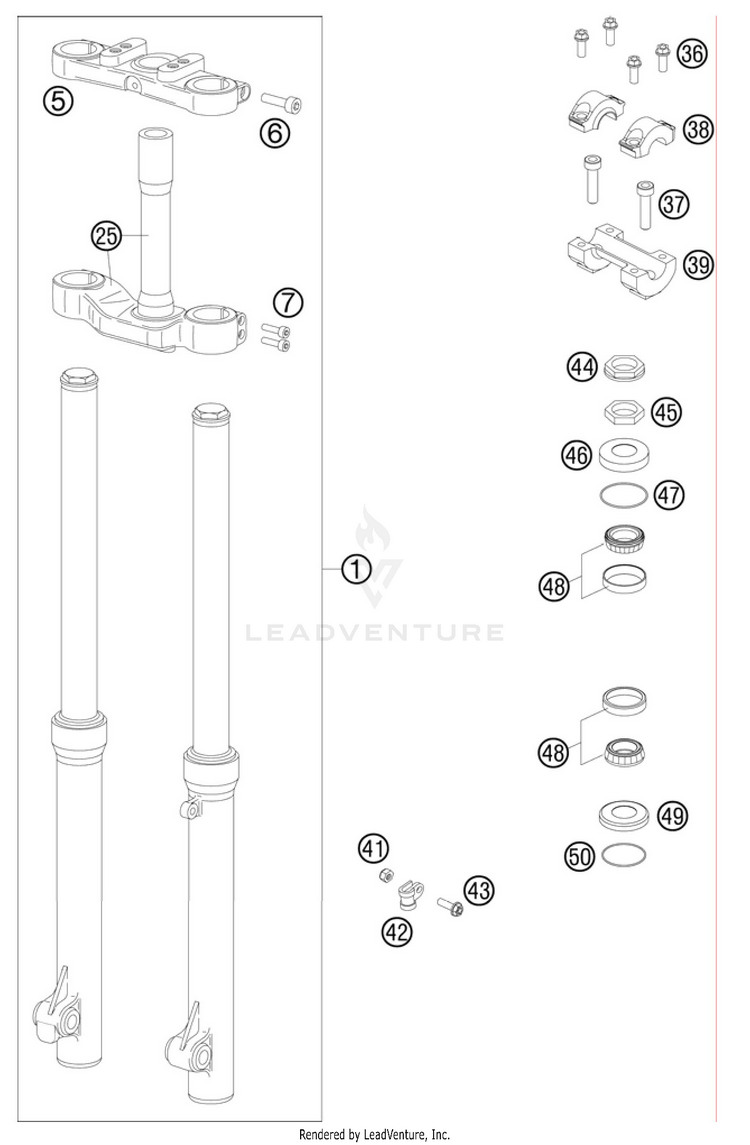

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
145201000233FRONT FORK CPL. 50SX MINI | 2009-$503.99Usually ships in 7-10 business days
57501498ATOP FORK PLATE 50 LC SEN. 03 | 03$144.19$122.56Usually ships in 7-10 business days
60912080303AH SCREW DIN0912-M 8X30$2.99$2.5410+ In-Stock
70912060253AH SCREW DIN0912-M 6X25$2.99$2.5410+ In-Stock
2577051264BOTTOM TRIP. CLAMP CPL.$336.19$285.76Usually ships in 7-10 business days
360025080306HH collar screw M8x30 | TX40$3.62$3.0810+ In-Stock
370032100256SAH-COLLAR SCREW M10X25 ISA45$4.99$4.2410+ In-Stock
3850301038000HANDLEBAR CLAMP D=22MM 2001 | 2001$25.29$21.5010+ In-Stock
3945101039000HANDLEBAR SUPPORT D=22MM 2001 | 2001$54.17$46.04Usually ships in 7-10 business days
410985050003SELF LOCKING NUT DIN0985-M 5$2.99$2.5410+ In-Stock
4245001070000BRAKE CABLE CLAMP RSGU 9/12$6.15$5.2310+ In-Stock
430025050206HH collar screw M5x20 TX30 | TX30$2.99$2.5410+ In-Stock
4459030029000HH NUT M20X1,5 WS=27 RIGHT$10.44$8.8710+ In-Stock
4546001043000STEERING HEAD NUT M20X1,5$8.90$8.011 In-Stock
4649001086000COVERING CAP$7.91$6.7210+ In-Stock
470770021300O-RING 40,94X2,62 NBR70$3.99$3.3910+ In-Stock
4849001081000TAPERED ROLLER BEARING 32004X$49.60$42.1610+ In-Stock
4946001086000PROTECTION RING 20,1X39X5$10.11$8.5910+ In-Stock
500770360030O-RING 36,00X3,00 NBR$2.99$2.5410+ In-Stock
