2011 KTM 690 ENDURO Front Wheel OEM Parts Diagram

Submodel 690 Enduro Chassis - 2011

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Wheel

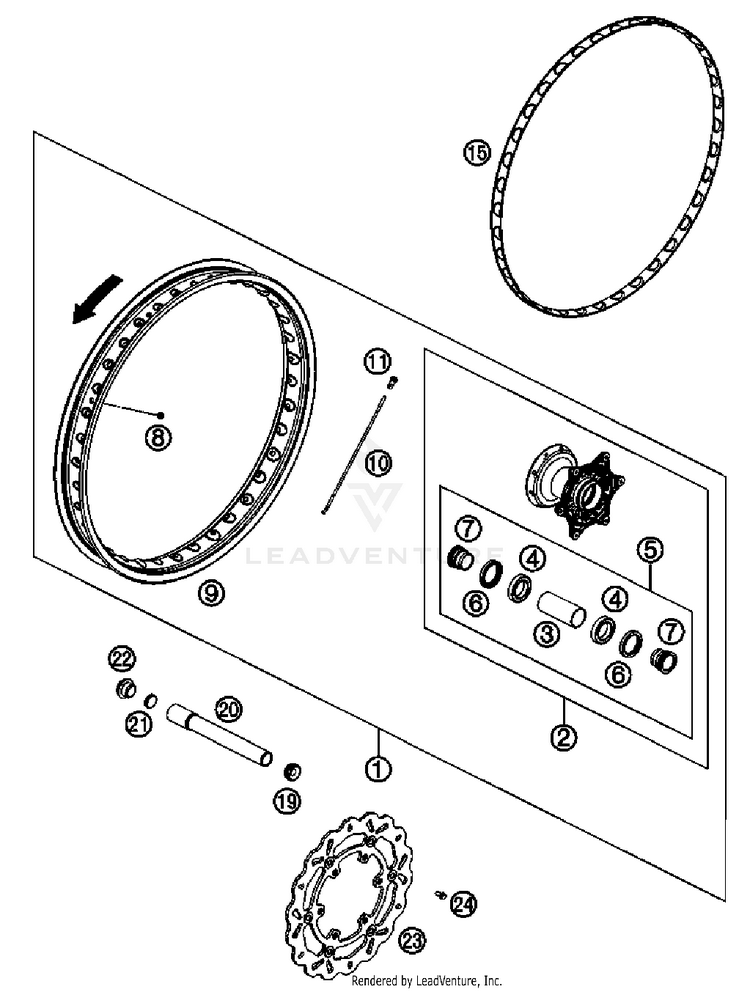

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17650900104430FRONT WHEEL CPL. 1,85X21'' 08 | 08$987.46$839.34Usually ships in 7-10 business days
275309010044FRONT HUB CPL. 08 | 08$346.60$294.61Usually ships in 7-10 business days
354809011000BEA.SPACERTUBE 35X2 L=79,4 03$30.24$25.7010+ In-Stock
40625069068GR.BALL BEAR.6906 DDU2CG23S6NM$40.80$34.6810+ In-Stock
578009015000FRONT WHEEL REP. KIT$125.50$106.6810+ In-Stock
60760354771SHAFT SEAL RING 35X47X7 TC$10.22$8.6910+ In-Stock
778009012000SPACER BUSHING F. FR. WHEEL 08 | 08$35.41$30.1010+ In-Stock
855003135000PLUG FOR RIM$2.99$2.5410+ In-Stock
97650907000030RIM 1,85X21'' DID BLACK 08 | 08$431.63$366.89Usually ships in 7-10 business days
1075309073226SPOKE M4,5X226-18'' INOX$4.99$4.2410+ In-Stock
1181210072200

(replaces part #
50309072100)

Spoke nipple, Quadrax M4,5$2.99$2.5410+ In-Stock
1558409073100RIM BAND FRONT 2MM 2003 | 2003$8.90$7.5610+ In-Stock
1954809081050PLUG BUSHING WS=27 03 | 03$11.54$9.8110+ In-Stock
2077309081100

(replaces part #
77309081000)

Wheel spindle, front | 07$97.45$82.8310+ In-Stock
2154809081070AUXILIARY SCREW FRONT 06 | 06$6.70$5.7010+ In-Stock
2254809082200

(replaces part #
54809082000)

Axle bolt M24x1.5 SW=27 | WS=27 03$11.54$9.8110+ In-Stock
2376509060100FRONT BRAKE DISC D=300$451.87$384.09Usually ships in 7-10 business days
2459009062013SPECIAL SCREW M6X13 WS=8 10.9 | WS=8 10.9$2.99$2.5410+ In-Stock
