2012 KTM 125 SX Exhaust System OEM Parts Diagram

Submodel 125 SX Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Exhaust System

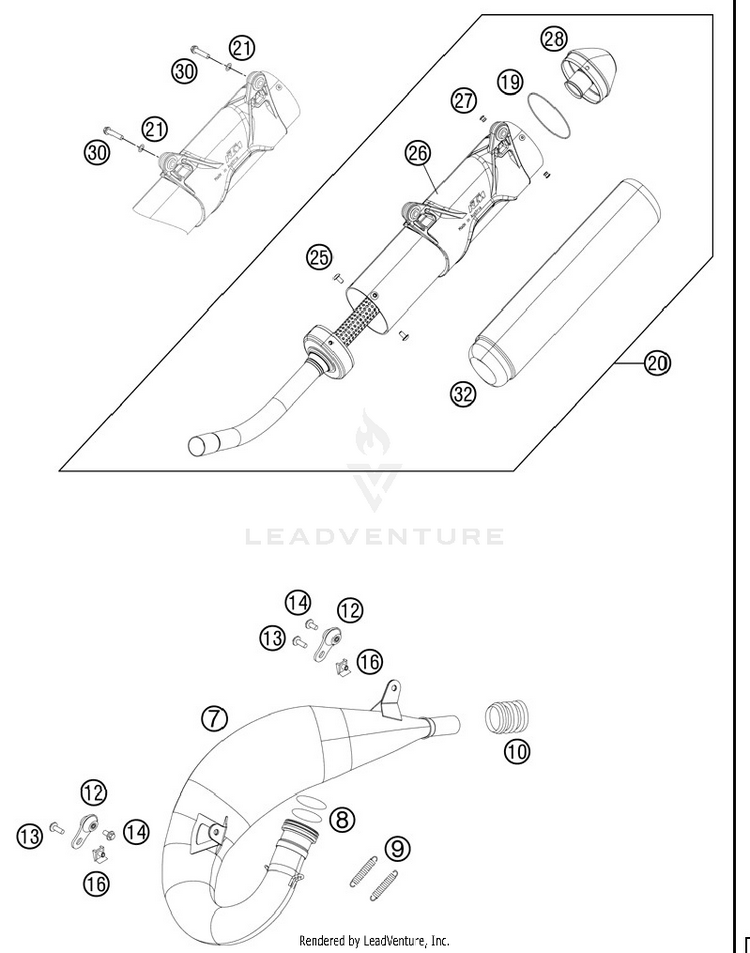

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
750305107000EXHAUST MANIFOLD$411.69$349.941 In-Stock
80770440030O-RING 44,00X3,00 VITON$4.99$4.2410+ In-Stock
9A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
1054605057000RUBBER SLEEVE D=21MM/23MM '93 | '93$24.30$20.6610+ In-Stock
1250305012000SWINGELEMENT FOR EXHAUST PIPE$23.42$19.9110+ In-Stock
130024060156HH collar screw M6x15 TX30 | TX30$3.99$3.3910+ In-Stock
140024060106HH COLLAR SCREW M6X10 TX30 | TX30$3.99$3.3910+ In-Stock
1654603048100clip nut M6$4.99$4.2410+ In-Stock
190770740015O-RING 74,00X1,50 FKM 75SH$4.99$4.2410+ In-Stock
2050305079500SILENCER 125-150 SX$378.61$321.82Usually ships in 7-10 business days
210137060003spring washer DIN 137 B - 6$2.99$2.5410+ In-Stock
2558605083010SCREW TORX M5X10 05 | 05$2.99$2.8310+ In-Stock
2650305179085SILENCER CASING CPL.W.MOUNTING$73.89$62.811 In-Stock
270011480800DUMMY RIVET 4,8X 8 NIRO$3.99$3.3910+ In-Stock
2850305083260END CAP CPL.$103.72$88.16Usually ships in 7-10 business days
300025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
3250305078235ROCK WOOL 235G$52.09$44.28Not Shipping
