2012 KTM 150 SX Shock Absorber Disassembled OEM Parts Diagram

Submodel 150 SX Chassis - 2012

Shop Aftermarket Parts

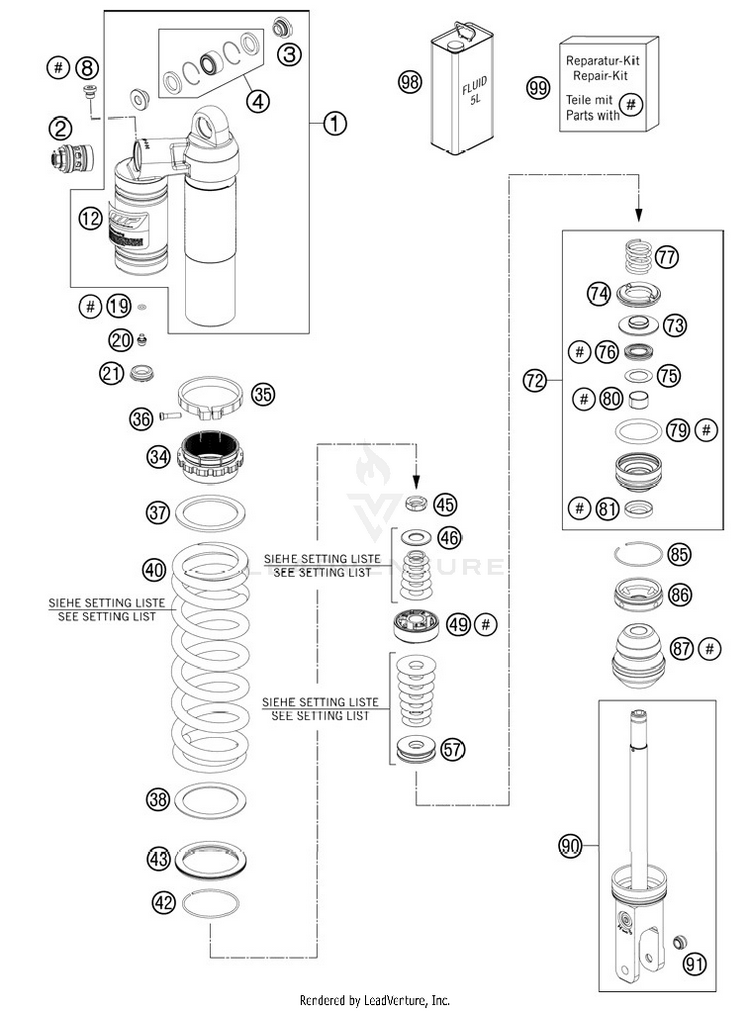

Shock Absorber Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150180944S1MONOSHOCK UPPER PART CPL.$441.39$375.18Usually ships in 7-10 business days
250180213S15DCC COMPR.DAMP.CON. SX 12 LINK$176.18$149.75Usually ships in 7-10 business days
346180010Distance bush 10x15/18/24,5x10,5$7.95$6.7610+ In-Stock
4R12012T

(replaces part #
R12012)

Ball joint bearing kit top 12mm | 07$42.01$35.7110+ In-Stock
850180095HS cylinder-head screw R1/8 l8$2.85$2.4210+ In-Stock
1252000149

(replaces part #
52000087)

Sticker WP warning India 35x60$11.76$10.00Usually ships in 7-10 business days
19S208600003000FB

(replaces part #
46810893)

O-ring 5,28x1,78 HNBR70 red$0.76$0.6510+ In-Stock
2036120151ST

(replaces part #
36120151)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
2146811208Rubber cap do not open 22x5,5 NBR$3.62$3.0810+ In-Stock
3450180938SA

(replaces part #
50180938)

Spring retainer M56x2x63,8x33 cpl.$41.24$35.0510+ In-Stock
3550181348

(replaces part #
50180937)

Clamp d64 natur$24.89$21.163 In-Stock
360912050203

(replaces part #
14460042)

AH SCREW DIN0912-M 5X20$1.20$1.0210+ In-Stock
3750180965Intermediate washer spring 64,45x78x3$12.75$10.843 In-Stock
3850180793Intermediate washer spring 61,8x80x1,5$3.62$3.0810+ In-Stock
4091210085SA

(replaces part #
91210085S)

SPRING 45-260 d11 ORANGE CPL. | (As required)$175.69$149.34Usually ships in 7-10 business days
4091210082SSPRING 260 51N/MM D11,25 OR. | (As required)$161.39$137.18Usually ships in 7-10 business days
4091210084SSPRING 260 57N/MM D11,75 OR. | (As required)$161.39$137.183 In-Stock
4091210083SSPRING 260 54N/MM D11,5 OR. | (As required)$161.39$137.18Not Shipping
4091210081SSPRING 260 48 N/MM ORANGE | (As required)$150.91$128.27Usually ships in 7-10 business days
4091210089SSPRING 260 60 N/MM ORANGE | (As required)$153.71$130.65Not Shipping
4250180273Round-wire snap ring 58,5x2$2.41$2.0510+ In-Stock
4350180824Spring retainer 61,5x79,1x7$30.24$25.70Usually ships in 7-10 business days
4550180141Piston rod nut 16x1$10.91$9.27Usually ships in 7-10 business days
4650180836Rebound disc 16x34x2 h0 | (As required)$11.49$9.77Usually ships in 7-10 business days
4950180786E

(replaces part #
50180786S)

PISTON D50$56.42$47.9610+ In-Stock
5750180961Rebound disc 16x43x15 h12 | (As required)$24.09$20.48Usually ships in 7-10 business days
5750180801Rebound disc 16x43x12,5 h8$37.79$32.12Not Shipping
7250180603S3ADAPTER D50 H28 CPL.$98.33$83.58Usually ships in 7-10 business days
7350180800Spring retainer 18,6x43,7x2 rebound$9.89$8.90Usually ships in 7-10 business days
7450180798Rubber pad rebound 28,8x48x8$4.83$4.35Usually ships in 7-10 business days
7550180604Shim 29,75x19x0,4 | 08$2.41$2.0510+ In-Stock
7650180605ST

(replaces part #
50180605S)

Seal ring cpl. 18x30x5 | 08$25.95$22.0610+ In-Stock
7750180780Spring (3,2) 30-30$16.71$14.20Usually ships in 7-10 business days
7950180103O-ring 41x5 NBR70$1.20$1.0210+ In-Stock
8046180119Guide bushing 18x20x12$8.99$7.6410+ In-Stock
8150180606Dirt scarper NOK 18mm black | 08$9.23$7.8510+ In-Stock
8550180126Round-wire snap ring 53x1,75-$1.3010+ In-Stock
8650180626Cover 50x6 h16 | 09$53.89$45.81Usually ships in 7-10 business days
8750180775Rubber pad 17x59x64$26.39$22.4310+ In-Stock
9050180773SA1MONOSHOCK BOTTOM PART CPL.$603.45$512.933 In-Stock
9146811205Bush M10x12/15/13x9,5$7.91$6.7210+ In-Stock
9850180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
99R12018T

(replaces part #
R12018)

REPAIR-KIT$76.44$64.973 In-Stock
