2012 KTM 150 SX Transmission I - Main Shaft OEM Parts Diagram

Submodel 150 SX Engine - 2012

Shop Aftermarket Parts

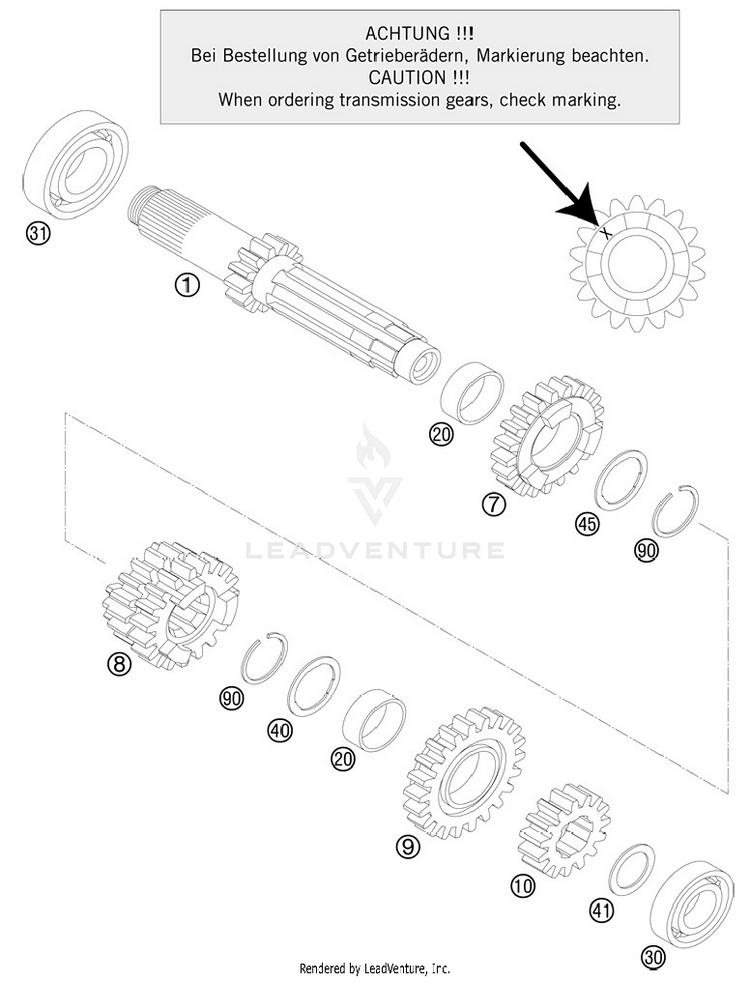

Transmission I - Main Shaft

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150333001044MAIN SHAFT CPL. 13-T '98 | '98$250.13$212.61Usually ships in 7-10 business days
750333007100IDLE GEAR 5.G. 5S19H SX 06 | 06$116.37$98.91Not Shipping
850333008200SLIDING GEAR 3./4. G. SX 06$174.34$148.19Usually ships in 7-10 business days
950333009500IDLE GEAR 6TH G. 6S22H SX 06 | 06$116.37$98.91Usually ships in 7-10 business days
1050333010100SOLID GEAR 2ND G.15-T''2S15'' 03 | 03$77.76$66.102 In-Stock
2050333020000IDLER GEAR BUSH. 22X25X11,1 A$25.18$21.409 In-Stock
300625160031GROOVED BALL B. 16003 C4 J1$24.19$20.5610+ In-Stock
310625060042BALL BEARING 6004 TN9 C4$19.24$16.3510+ In-Stock
4050333040000STOP DISC 22,2X27,8X1 A$6.15$5.236 In-Stock
4150333041000STOP DISC 17,2X26X1 B$3.99$3.3910+ In-Stock
4550333045000STOP DISK 22,2X27,8X1$6.15$5.54Usually ships in 7-10 business days
9050133090000LOCK RING 22X1,2$2.99$2.5410+ In-Stock
