2012 KTM 150 XC Pro Lever Linking OEM Parts Diagram

Submodel 150 XC Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Pro Lever Linking

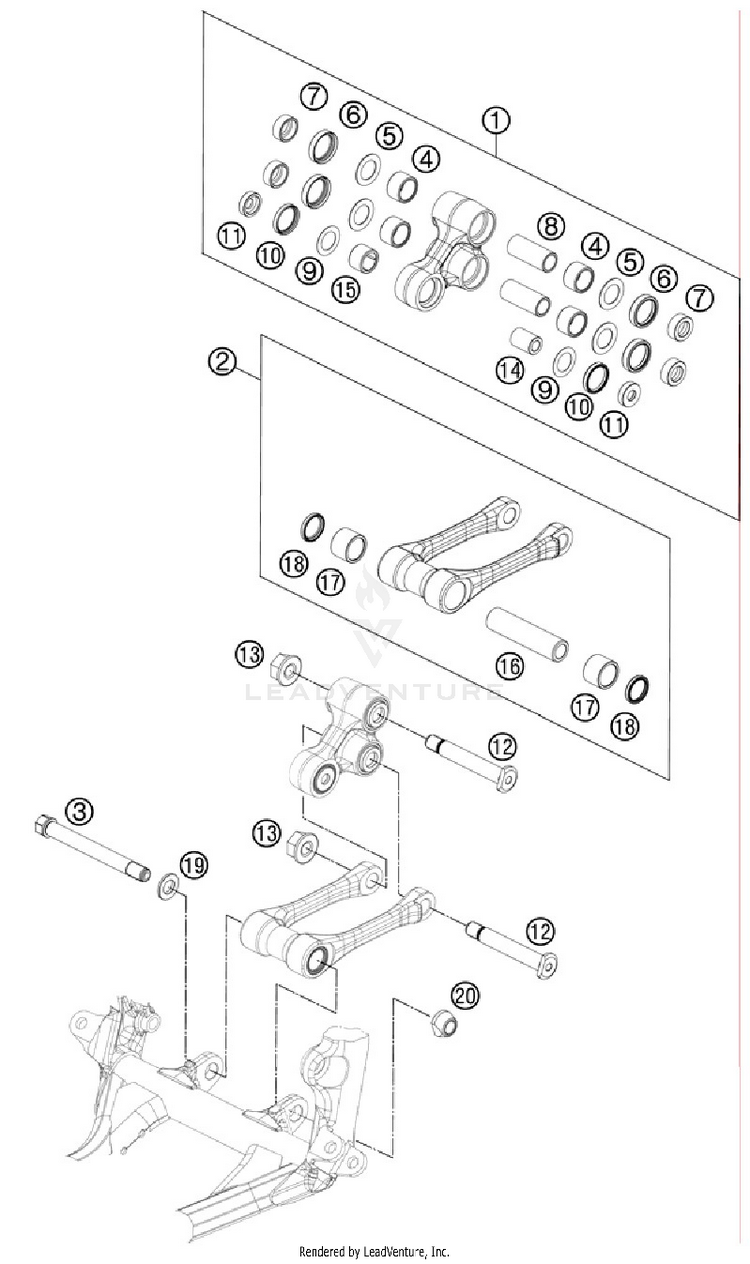

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17720408014401

(replaces part #
7720408004401)

TRIANGLE LEVER CPL. SX 2013$334.61$284.4210+ In-Stock
27720408304401PULL ROD CPL.$247.27$210.1810+ In-Stock
377404084100

(replaces part #
77404084000)

Pin pull rod bearing M14$63.35$53.8510+ In-Stock
454603097000NEEDLE BUSH HK 2016$17.70$15.0410+ In-Stock
559033080000SHIM 20X32X1$2.41$2.0510+ In-Stock
60760253270radial shaft seal 25x32x7$7.80$6.6310+ In-Stock
777204080130

(replaces part #
77204080030)

BUCKET SHAFT SEAL RING 25X11$12.86$10.9310+ In-Stock
854603081000BUSHING SLEEVE 15 X 20 X 48$29.14$24.7710+ In-Stock
950180604Shim 29,75x19x0,4 | 08$2.41$2.0510+ In-Stock
100760243050SHAFT SEAL RING 24X30X5$6.15$5.2310+ In-Stock
1177204080020BUCKET FOR SHAFT SEAL RING$11.65$9.9010+ In-Stock
1277204085000

(replaces part #
77204085100)

BOLT FOR CANTILEVER M14$57.63$48.9910+ In-Stock
1354603015000SELF LOCKING NUT M14X1,5 WS=19 | WS=19$6.48$5.5110+ In-Stock
1477204080010BEARING SLEEVE 10X18X25,5$9.89$8.4110+ In-Stock
150618182416NEEDLE BUSH HN1816 RS 18/24/16$15.17$12.8910+ In-Stock
1679004084010

(replaces part #
77204084010)

BEARING SLEEVE F. TIE-ROD 16$26.06$22.1510+ In-Stock
170618222820NEEDLE BEARING HK2220 22X28X20$13.30$11.3010+ In-Stock
180760222841SHAFT SEAL RING G22x28x4$4.99$4.2410+ In-Stock
1977404084010WASHER TIE-ROD BEARING M14$8.02$6.8210+ In-Stock
2077404084120

(replaces part #
77404084020)

HEX NUT M14X1.5 SW17$22.76$19.3510+ In-Stock
