2012 KTM 200 XC-W Hand Brake Cylinder OEM Parts Diagram

Submodel 200 XCW Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

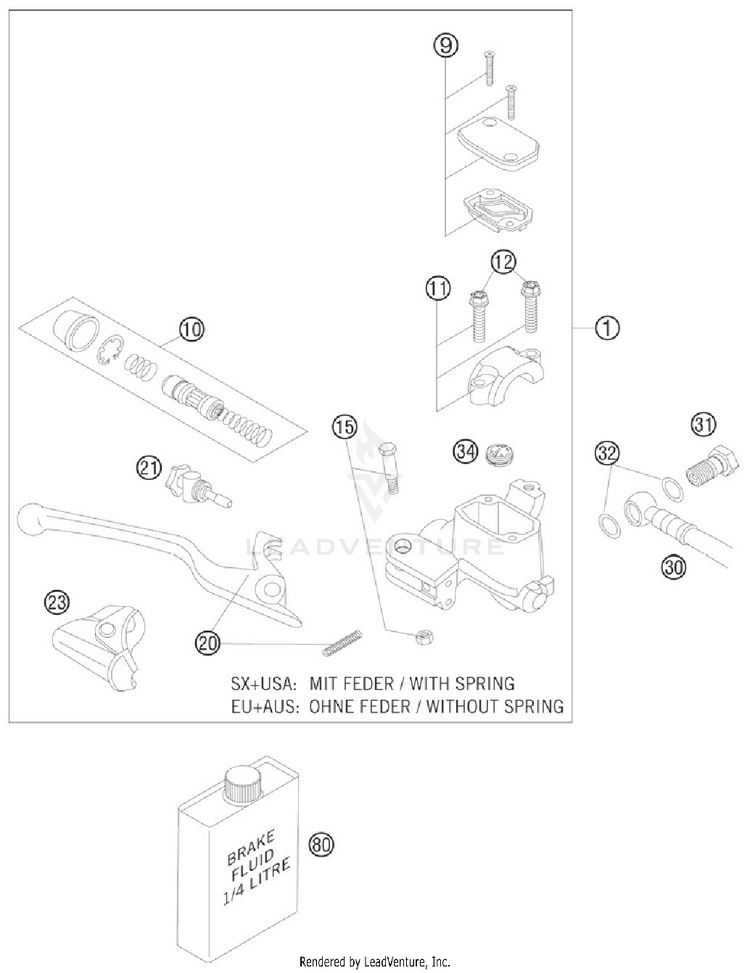

Hand Brake Cylinder

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
177013001044HAND BRAKE CYLINDER CPL. SX 09 | 09$293.14$249.176 In-Stock
950313003000HANDBRAKE CYL.COVER CPL.NATURE$29.03$24.6810+ In-Stock
1054813008300REP.SET PISTON D=9MM 2009 | 2009$74.02$62.9210+ In-Stock
1150313005000CLAMP CPL. NATURE$30.68$26.089 In-Stock
120025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
1550313006100LEVER SCREW CPL. 2001$14.84$12.6110+ In-Stock
2054813002200HAND BRAKE LEVER + SPRING 2009 | 2009$30.35$25.8010+ In-Stock
2154813007300ADJUSTING SCREW CPL. SX 2009 | 2009$35.30$30.0010+ In-Stock
2350313004000PROTECTION CAP HAND BRAKE CYL.$14.84$12.6110+ In-Stock
3059013011000BRAKEHO. FRONT 1300MM 2000 | 2000$143.10$121.6410+ In-Stock
3154813020100

(replaces part #
54813020200)

banjo bolt M10x1x19 black | 08$11.65$9.9010+ In-Stock
320603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
3454802051000VALVE$22.54$19.1610+ In-Stock
8000062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
