Cylinder

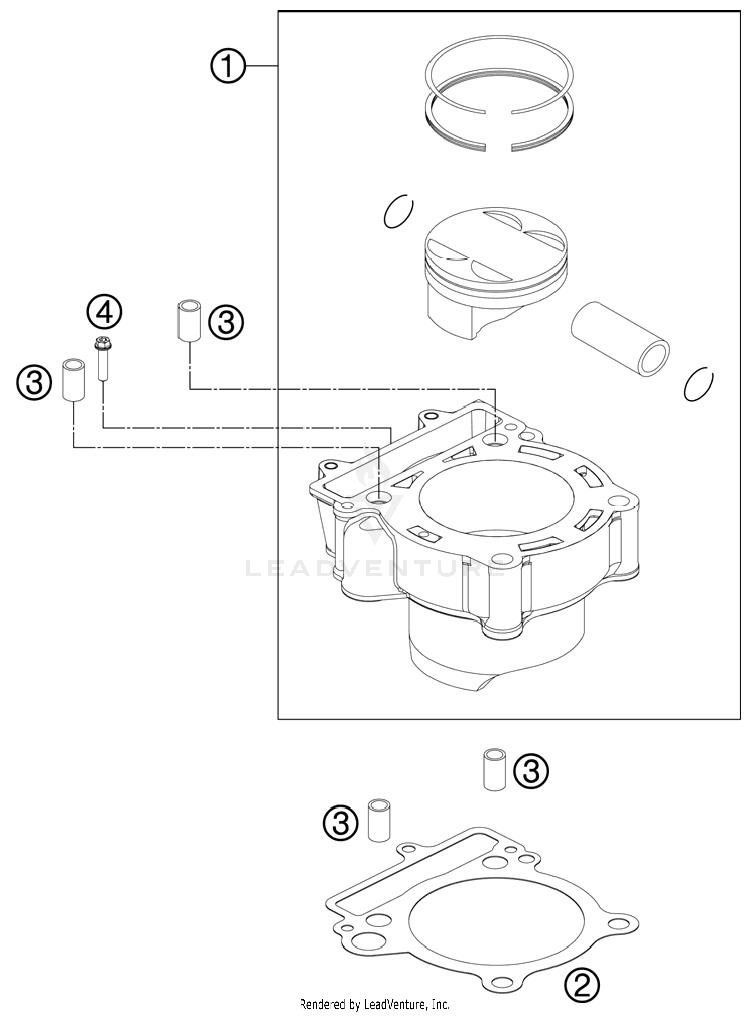

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
177130038100

(replaces part #
77130038000)

CYLINDER + PISTON CPL.$1,052.58$894.69Usually ships in 7-10 business days
277030035200CYLINDER BASE GASKET$9.12$7.7510+ In-Stock
358530014100

(replaces part #
58530014000)

dowl sleeve 10.2x12.5x10 | 2001$4.99$4.2410+ In-Stock
40025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
