2012 KTM 50 SX MINI Monoshock Disassembled OEM Parts Diagram

Submodel 50 SX Mini Chassis - 2012

Shop Aftermarket Parts

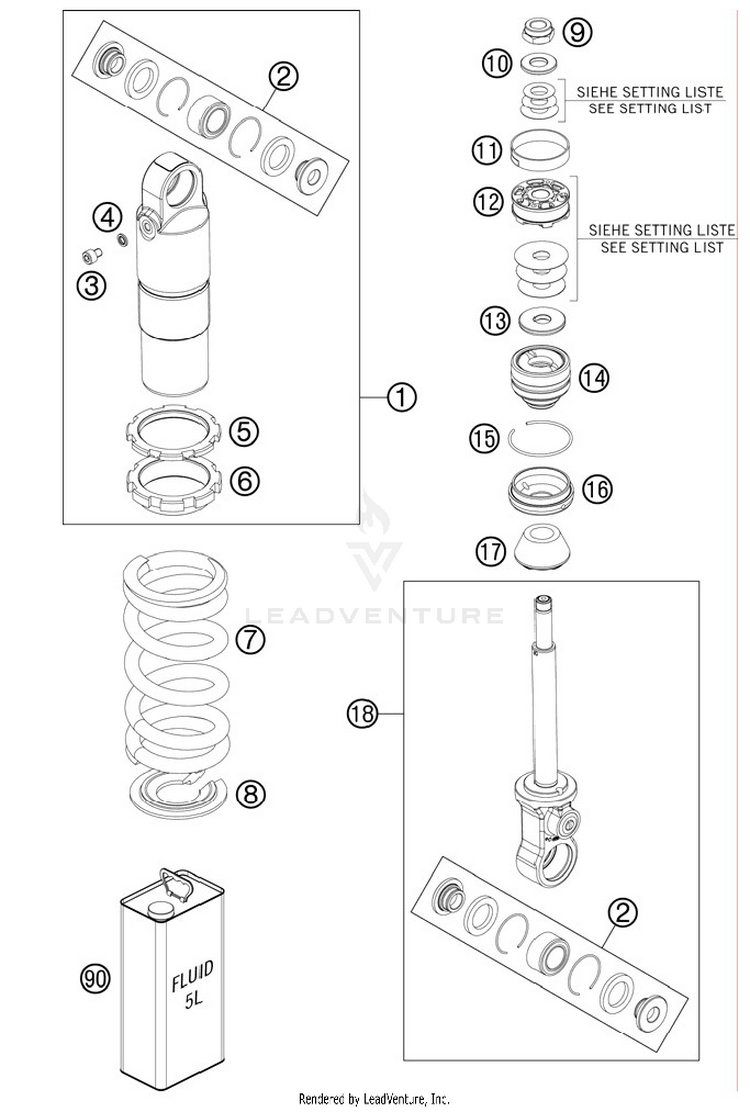

Monoshock Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
2R306REPAIR KIT BEARINGS 50SX JUN07$91.65$77.90Usually ships in 7-10 business days
336120785SCREW M5 C.K. RVS$3.29$2.96Usually ships in 7-10 business days
436120782SEAL D5,21XD8,38X1,22$12.75$10.841 In-Stock
536120015Lock nut shock M44x1,5$36.18$30.751 In-Stock
636120418Adjustment nut shock M44x1,5$53.78$45.71Usually ships in 7-10 business days
793010185SSPRING 75N/MM 75-120 120MM ORA | (As required)$153.71$130.65Usually ships in 7-10 business days
793010186SSPRING 85N/MM 85-120 120MM ORA | (As required)$153.71$130.65Usually ships in 7-10 business days
793010184SSPRING 65N/MM 65-120 120MM ORA | (As required)$153.71$130.65Usually ships in 7-10 business days
836120461Spring retainer 27x53x3$53.89$45.81Usually ships in 7-10 business days
936120052Piston rod nut M10x1 black$13.08$11.12Usually ships in 7-10 business days
1036120604Washer 10x22x2,5$24.52$20.84Usually ships in 7-10 business days
1136120040Pistonring 33x35x8$8.13$6.9110+ In-Stock
1236120071Piston 10,5x35,6x13,65 3,5/5,5$72.59$61.70Usually ships in 7-10 business days
1336120786Rebound disc 10x28,5x14 h10$34.20$29.07Usually ships in 7-10 business days
1436120787SSealholder 36x26,6 cpl. | 07$90.30$76.7610+ In-Stock
1540540015Round-wire snap ring 38x1,5$3.62$3.087 In-Stock
1636120780Cover 36,12x5,5 h13$25.84$21.96Usually ships in 7-10 business days
1736120427Rubber pad 14x34x19$43.55$37.0210+ In-Stock
1836120777S1MONOSH. BOTTOM PART L86 CPL.07$350.48$297.91Usually ships in 7-10 business days
9050180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
