2012 KTM 65 SX Clutch Cover OEM Parts Diagram

Submodel 65 SX Engine - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

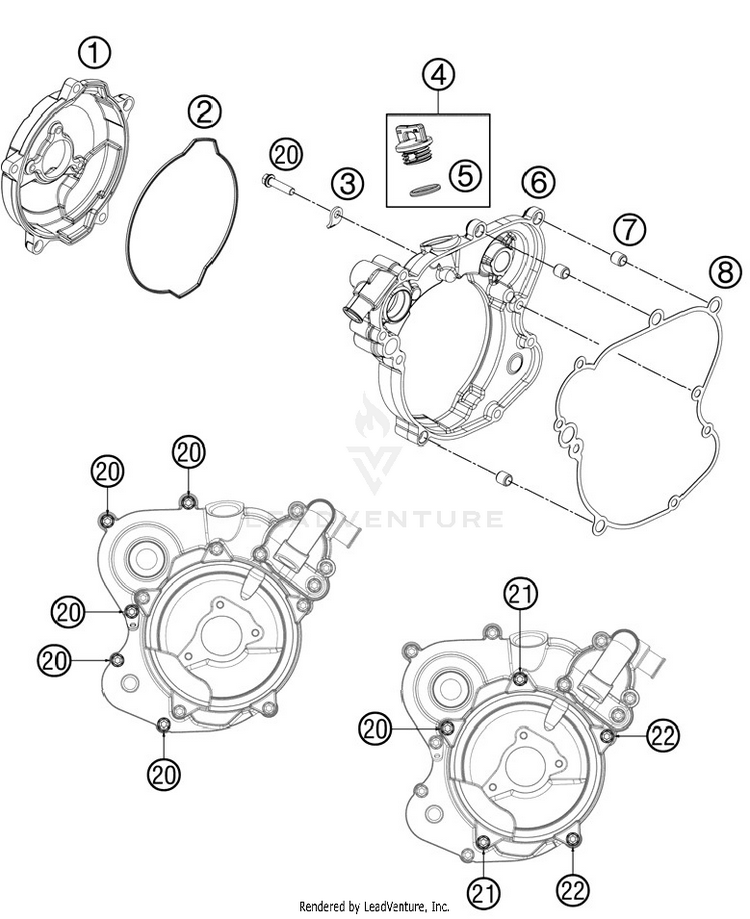

Clutch Cover

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146230026000CLUTCH COVER OUTSIDE$103.28$87.7910+ In-Stock
246230027000GASKET - CLUTCH OUTER COVER$8.68$7.3810+ In-Stock
351005074000RETAINING PLATE$3.99$3.3910+ In-Stock
458030020100oil plug cpl. M24x3$6.15$5.2310+ In-Stock
50770191015O-RING 19,00X3,00 NBR$2.99$2.5410+ In-Stock
646330101000

(replaces part #
46230001100)

Inner clutch cover$96.79$82.275 In-Stock
749030090100

(replaces part #
49030090000)

DOWEL 9,8 X7X10$2.99$2.8310+ In-Stock
846230025100GASKET - CLUTCH INNER COVER$18.03$15.3310+ In-Stock
200025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
210025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
220025060556HH collar screw M6x55 TX30 | TX30$3.99$3.3910+ In-Stock
