2012 KTM 690 ENDURO Clutch Cover OEM Parts Diagram

Submodel 690 Enduro Engine - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Clutch Cover

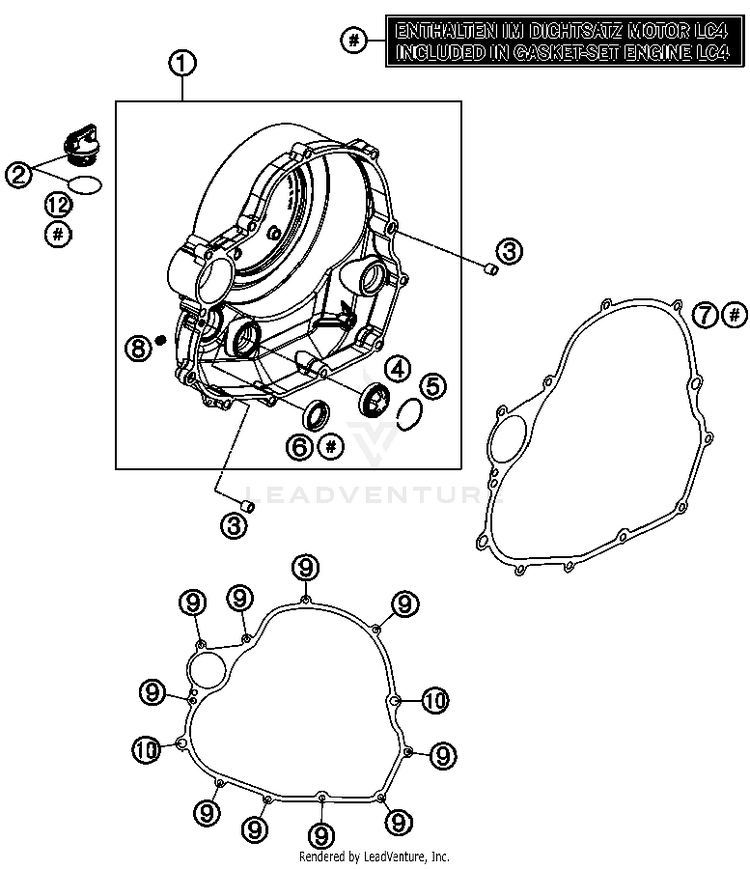

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175030001044CLUTCH COVER CPL. 07 | 07$308.32$262.077 In-Stock
258030020100oil plug cpl. M24x3$6.15$5.2310+ In-Stock
349030090100

(replaces part #
49030090000)

DOWEL 9,8 X7X10$2.99$2.8310+ In-Stock
459030019200

(replaces part #
59030019100)

OIL SIGHT GLASS$25.07$21.3110+ In-Stock
561030019050CIRCLIP OIL LEVEL GLASS 03 | 03$1.99$1.6910+ In-Stock
60760172871SHAFT SEAL RING 17X28X7B VITON$6.70$5.7010+ In-Stock
775030025000CLUTCH CASE GASKET 07 | 07$22.98$19.5310+ In-Stock
859030296000SCREW PLUG$7.36$6.2610+ In-Stock
90025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
100025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
120770191015O-RING 19,00X3,00 NBR$2.99$2.5410+ In-Stock
