2012 KTM 690 ENDURO Transmission I - Main Shaft OEM Parts Diagram

Submodel 690 Enduro Chassis - 2012

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Transmission I - Main Shaft

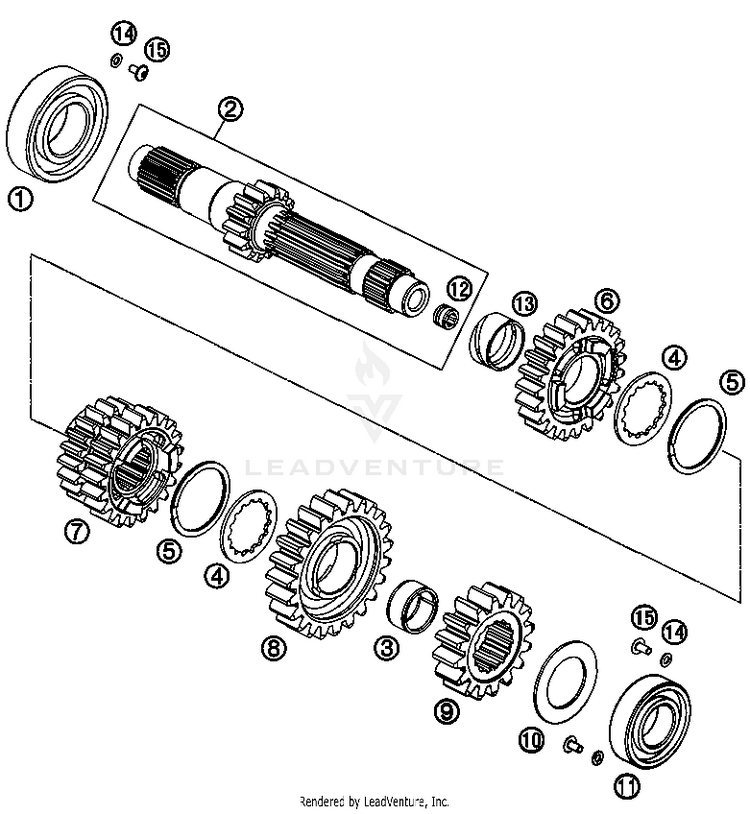

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
106252858161BALL BEARING 58/28 C4 N$22.98$19.53Usually ships in 7-10 business days
276233001000MAIN SHAFT$530.52$450.94Usually ships in 7-10 business days
30405222613NEEDLE BEAR. K 22X26X13 TN$10.77$9.1510+ In-Stock
456533016300STOP DISK 22,7 X 32 X 1,5$7.03$6.33Usually ships in 7-10 business days
50471025000CIRCLIP D25$7.14$6.43Usually ships in 7-10 business days
675033105000IDLER GEAR 5.G.$84.69$71.99Usually ships in 7-10 business days
7750330030203/4TH GEAR MAINSHAFT$173.46$147.44Usually ships in 7-10 business days
875033006000IDLER 6. GEAR 07 | 07$176.65$150.15Usually ships in 7-10 business days
975033002000SOLID GEAR 2.G. 07 | 07$75.23$63.95Usually ships in 7-10 business days
1059033080000SHIM 20X32X1$2.41$2.0510+ In-Stock
110625060044BALL BEARING 6004 DDUN C4$15.28$12.994 In-Stock
1277333001160GUIDE BUSHING$6.15$5.54Usually ships in 7-10 business days
1376233022200BUSHING 25X28X13$123.63$105.09Usually ships in 7-10 business days
140021050003washer DIN 9021 A - 5.3$1.99$1.6910+ In-Stock
150738050082

(replaces part #
073800501001)

Flat Head Screw ISO7380 M5x8 A2 TX25$1.99$1.79Usually ships in 7-10 business days
