2014 KTM 300 XC Exhaust System OEM Parts Diagram

Submodel 300 XC Chassis - 2014

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Exhaust System

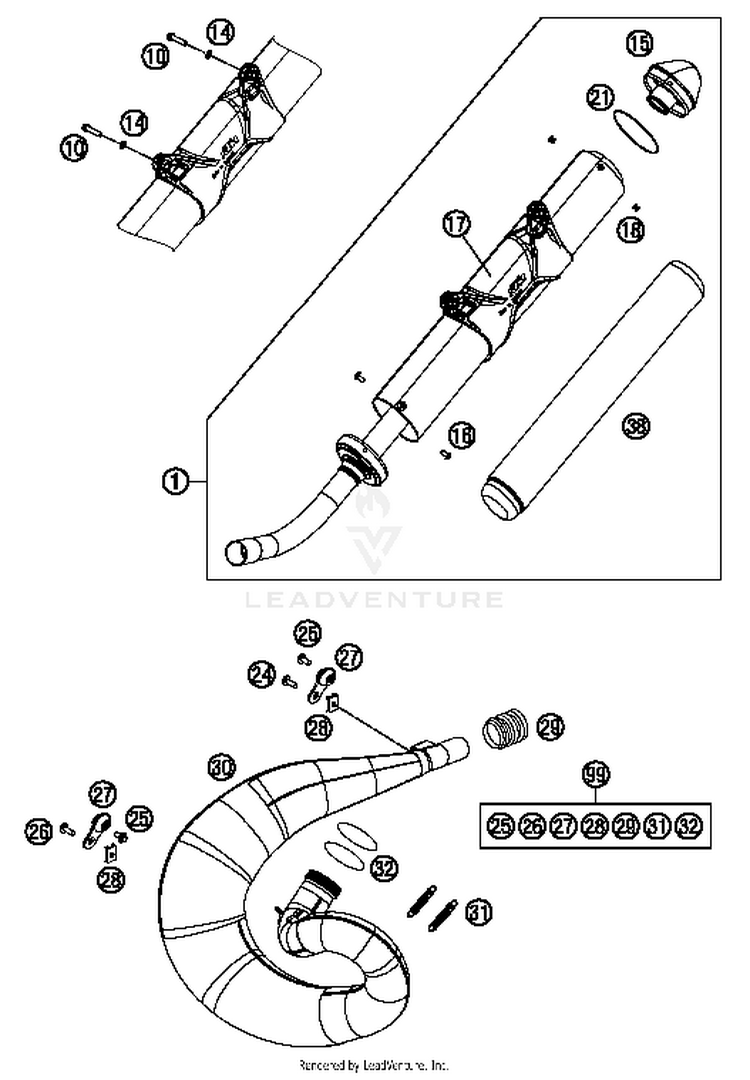

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
154805083200MAIN SILENCER 250-300 EXC$475.41$404.10Usually ships in 7-10 business days
100025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
140137060003spring washer DIN 137 B - 6$2.99$2.5410+ In-Stock
1554805083260ENDCAP CPL.$99.10$84.24Usually ships in 7-10 business days
1658605083010SCREW TORX M5X10 05 | 05$2.99$2.8310+ In-Stock
1754805183085SILENCER HOUS. CPL. W. HANGING$124.18$105.55Usually ships in 7-10 business days
180011480800DUMMY RIVET 4,8X 8 NIRO$3.99$3.3910+ In-Stock
210770740015O-RING 74,00X1,50 FKM 75SH$4.99$4.2410+ In-Stock
240024060136HH collar screw M6x13 TX30 | TX30$3.99$3.3910+ In-Stock
250024060106HH COLLAR SCREW M6X10 TX30 | TX30$3.99$3.3910+ In-Stock
260024060156HH collar screw M6x15 TX30 | TX30$3.99$3.3910+ In-Stock
2750305012000SWINGELEMENT FOR EXHAUST PIPE$23.42$19.9110+ In-Stock
2854603048100clip nut M6$4.99$4.2410+ In-Stock
2950205057000SILICON SLEEVE D=29/31MM$38.71$32.9010+ In-Stock
3054805107000EXHAUST MANIFOLD$631.72$536.963 In-Stock
31A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
320770440030O-RING 44,00X3,00 VITON$4.99$4.2410+ In-Stock
3854805078315ROCKWOOL 315G$69.95$59.4610+ In-Stock
9900050000811EXHAUST HARDWARE KIT 11-14 | 11-13, As Required$129.68$110.2310+ In-Stock
