2014 KTM 50 SX MINI Clutch Cover OEM Parts Diagram

Submodel 50 SX Mini Engine - 2014

Shop Aftermarket Parts

Clutch Cover

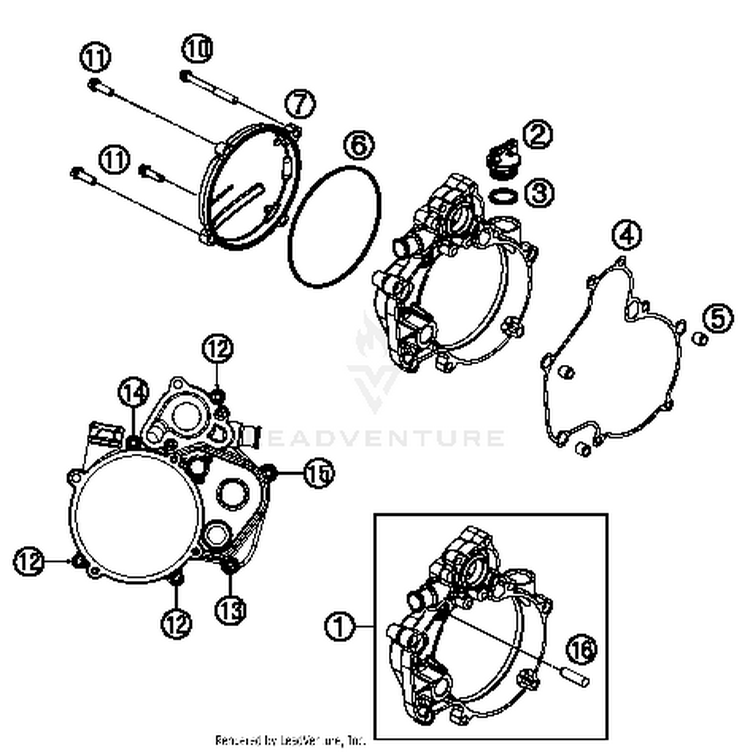

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
145330001044

(replaces part #
45230001044)

inner clutch cover cpl.$137.38$116.777 In-Stock
258030020100oil plug cpl. M24x3$6.15$5.2310+ In-Stock
30770191015O-RING 19,00X3,00 NBR$2.99$2.5410+ In-Stock
445230025100

(replaces part #
45230025000)

Inner clutch cover gasket$13.85$11.7710+ In-Stock
549030090100

(replaces part #
49030090000)

DOWEL 9,8 X7X10$2.99$2.8310+ In-Stock
645230027000CLUTCH COVER GASKET$8.90$7.5610+ In-Stock
74523002620015

(replaces part #
45230026100)

Outer clutch cover$74.24$63.1010+ In-Stock
100025060606HH collar screw M6x60 TX30 | TX30$3.99$3.3910+ In-Stock
110025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
120025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
130025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
140025060356HH collar screw M6x35 TX30 | TX30$3.99$3.3910+ In-Stock
150025060506HH collar screw M6x50 TX30 | TX30$3.99$3.3910+ In-Stock
160325080300CYLINDER STUD DIN6325 8X30 M6$2.99$2.5410+ In-Stock
