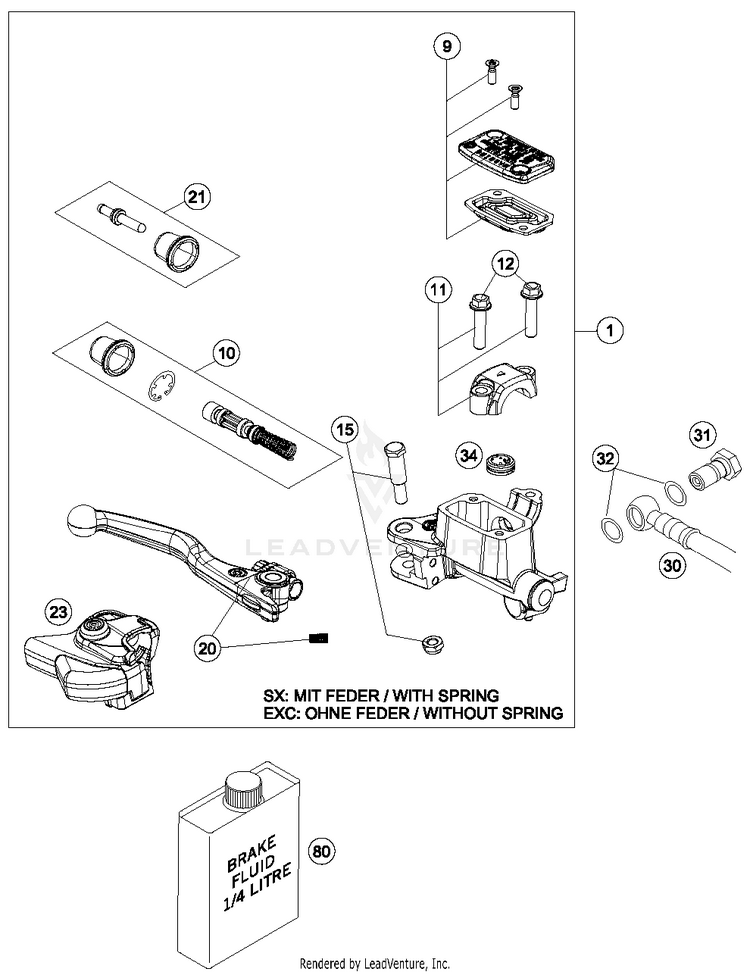

Hand Brake Cylinder

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
177713001044HAND BRAKE CYLIND. CPL. SX 2014 | 2014$341.98$290.6810+ In-Stock
977713003000HAND BRAKE CYL. COVER$37.39$31.7810+ In-Stock
1077713008000REPAIR KIT PISTON SX 2014 | 2014$67.31$57.2110+ In-Stock
1154802005100CLAMP CPL. 06$30.35$25.8010+ In-Stock
120025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
1577713006000LEVER SCREW$22.99$19.5410+ In-Stock
2077713002000HAND BRAKE LEVER +SPRING SX 14 SX WITH SPRING,EXC WITHOUT SP$45.99$39.1010+ In-Stock
2177713007000PUSH ROD CPL. SX 2014 | 2014$39.99$33.9910+ In-Stock
2377713004000PROTECTION CAP HAND BRAKE CYL.$23.09$19.6310+ In-Stock
3059013010000BRAKEHO. FRONT 1235MM 2000 | 2000$150.25$127.7110+ In-Stock
3154813020100banjo bolt M10x1x19 black$11.65$9.9010+ In-Stock
320603100141sealing ring DIN 7603 10x14x1$2.99$2.5410+ In-Stock
3454802051000VALVE$22.54$19.1610+ In-Stock
8000062030000BRAKE FLUID DOT5.1 0,25L$15.99$13.5910+ In-Stock
