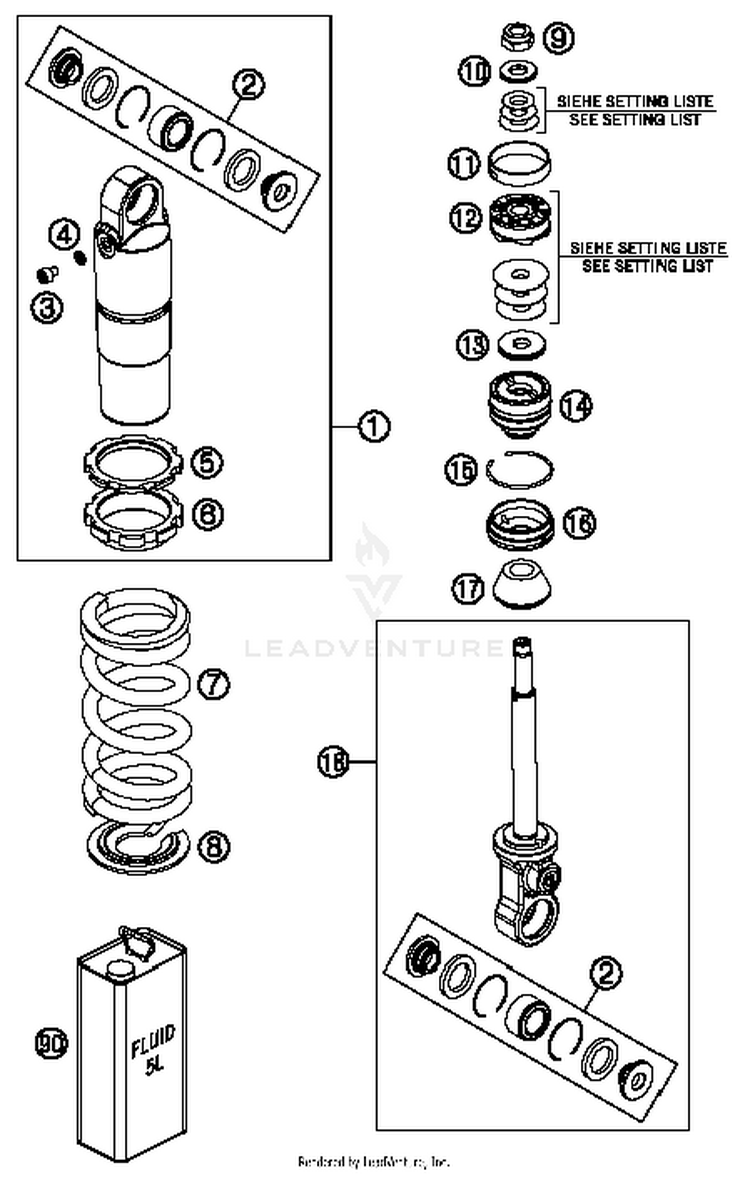

2016 KTM 50 SX Monoshock Disassembled OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	36120783S	MONOSHOCK TOP PART L147 CPL.07	$443.65	$377.10	Usually ships in 7-10 business days
2	R307	REPAIR KIT BEARINGS 50 SX 07	$105.92	$90.03	Usually ships in 7-10 business days
3	36120785	SCREW M5 C.K. RVS	$3.29	$2.96	Usually ships in 7-10 business days
4	36120782	SEAL D5,21XD8,38X1,22	$12.75	$10.84	1 In-Stock
5	36120015	Lock nut shock M44x1,5	$36.18	$30.75	1 In-Stock
6	36120418	Adjustment nut shock M44x1,5	$53.78	$45.71	Usually ships in 7-10 business days
7	93010176S	SPRING 30N/MM 30-130 130MM OR. \| As Required	$161.39	$137.18	Usually ships in 7-10 business days
7	93010177S	SPRING 40N/MM 40-130 130MM OR. \| As Required	$161.39	$137.18	Usually ships in 7-10 business days
7	93010175S	SPRING 35N/MM 35-130 130MM OR.	$180.69	$153.59	Usually ships in 7-10 business days
8	36120386	Spring retainer 27x57x2	$31.78	$27.01	6 In-Stock
9	36120052	Piston rod nut M10x1 black	$13.08	$11.12	Usually ships in 7-10 business days
10	36120604	Washer 10x22x2,5	$24.52	$20.84	Usually ships in 7-10 business days
11	36120040	Pistonring 33x35x8	$8.13	$6.91	10+ In-Stock
12	36120071	Piston 10,5x35,6x13,65 3,5/5,5	$72.59	$61.70	Usually ships in 7-10 business days
13	14360065	Rebound disc 12x28,5x4 h0	$12.53	$10.65	Usually ships in 7-10 business days
14	36120787S	Sealholder 36x26,6 cpl.	$90.30	$76.76	10+ In-Stock
15	40540015	Round-wire snap ring 38x1,5	$3.62	$3.08	7 In-Stock
16	36120780	Cover 36,12x5,5 h13	$25.84	$21.96	Usually ships in 7-10 business days
17	36120427	Rubber pad 14x34x19	$43.55	$37.02	10+ In-Stock
18	36120776S1	MONOSH. BOTTOM PART L99 CPL.07	$348.17	$295.94	Usually ships in 7-10 business days
90	50180751S1	SHOCK ABSORBER FLUID 5 LT	$175.99	$149.59	6 In-Stock
