2016 KTM 50 SX Transmission OEM Parts Diagram

Submodel 50 SX Engine - 2016

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Transmission

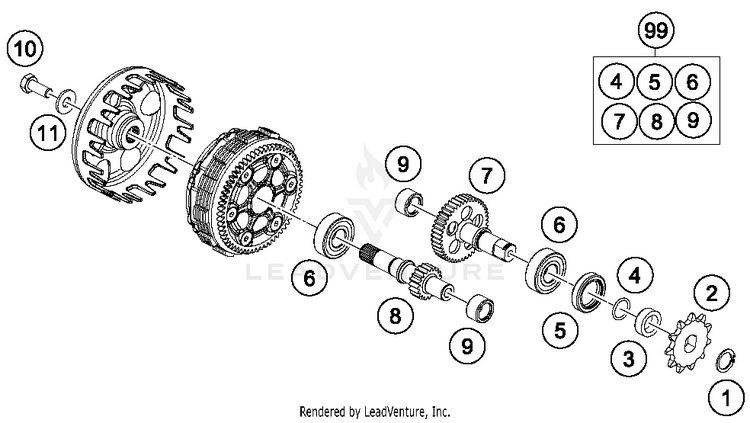

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10471150010CIRCLIP DIN0471-15X1$2.99$2.5410+ In-Stock
245233029011SPROCKET 11 T. | As Required$31.12$26.4510+ In-Stock
245233029010SPROCKET 10 T. | As Required$31.12$26.4510+ In-Stock
345233030000DISANCESPACER F. SPROCKET$16.60$14.1110+ In-Stock
40770015018O-RING 15,00X1,80$2.99$2.5410+ In-Stock
50760223270SHAFT SEAL RING 22X32X7 BSL$10.00$8.5010+ In-Stock
645133028000BALL BEARING 15X35X11$26.28$22.3410+ In-Stock
745233010200COUNTER SHAFT$165.54$140.7110+ In-Stock
8A40033001100

(replaces part #
45233001200)

Main shaft$101.41$86.207 In-Stock
954632095000needle sleeve HK 1412 14x20x12$8.24$7.0010+ In-Stock
100035080206SSHCS M8x20 TX45$6.26$5.3210+ In-Stock
110340084234WASHER DIN 6340 8,4X23X4$1.99$1.6910+ In-Stock
9945233010210

(replaces part #
00050000948)

Counter shaft repair kit 50cc | As Required$227.03$192.9810+ In-Stock
