Ignition System

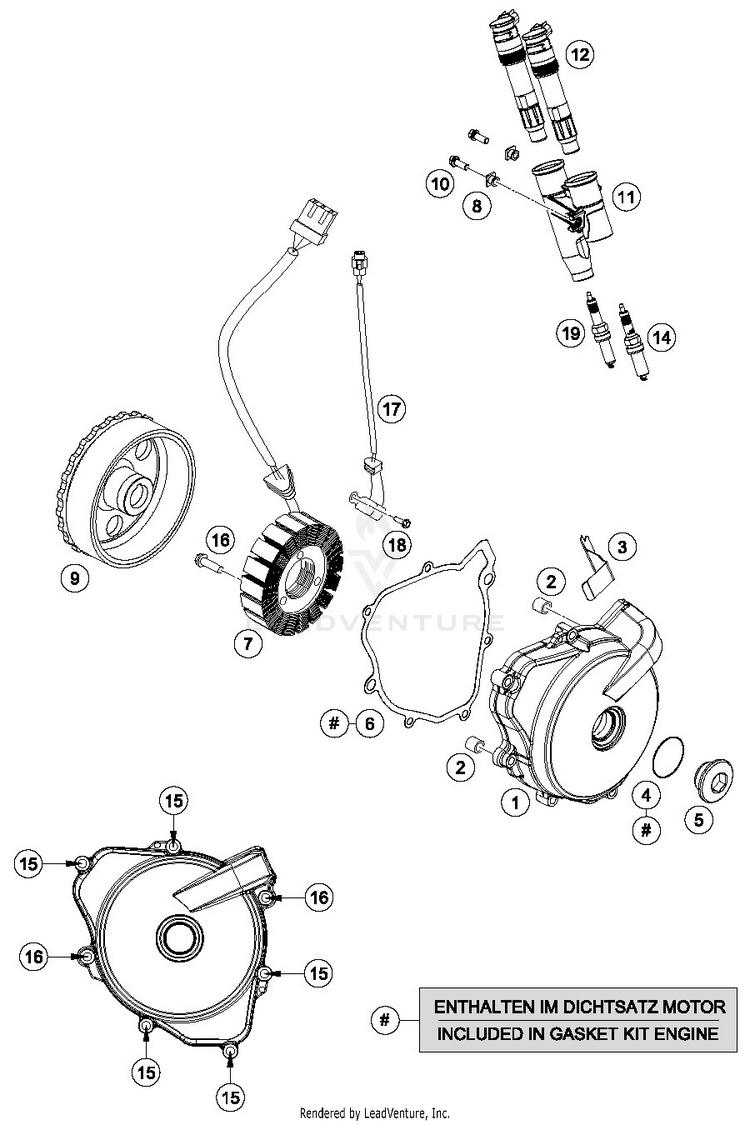

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17503000210041IGNITION COVER$92.83$78.915 In-Stock
249030090100

(replaces part #
49030090000)

DOWEL 9,8 X7X10$2.99$2.8310+ In-Stock
360039040020generator line bracket$3.99$3.59Usually ships in 7-10 business days
407700240251o-ring 24.00x2.50 Viton$3.99$3.3910+ In-Stock
56003009400030threaded plug M24x1.5 PA 6.6$4.99$4.2410+ In-Stock
675030040000IGNITI.COVER GASKET 07$8.57$7.2810+ In-Stock
775039004200

(replaces part #
75039004100)

Stator$186.44$158.477 In-Stock
876036075050INSET$8.35$7.521 In-Stock
975039005300

(replaces part #
75039005200)

Rotor$288.63$245.34Usually ships in 7-10 business days
100025060166HH collar screw M6x16 TX30 | TX30$2.99$2.5410+ In-Stock
1176636075000STICKCOIL HOLDER$17.81$15.14Usually ships in 7-10 business days
1276039006000STICK COIL$114.28$97.146 In-Stock
1460439093000SPARK PLUG M12X1.25$32.77$27.8510+ In-Stock
150025060256HH collar screw M6x25 TX30 | TX30$3.99$3.3910+ In-Stock
160025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
1775039034000PULSER COIL$78.53$66.75Usually ships in 7-10 business days
1859009062016SPECIAL SCREW M6X16 WS=8 10.9$2.99$2.5410+ In-Stock
1960439094000SPARK PLUG M10X1$35.19$29.9110+ In-Stock
