2016 KTM 690 Duke Shifting Lever OEM Parts Diagram

Submodel 690 DUKE WHITE Chassis - 2016

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Shifting Lever

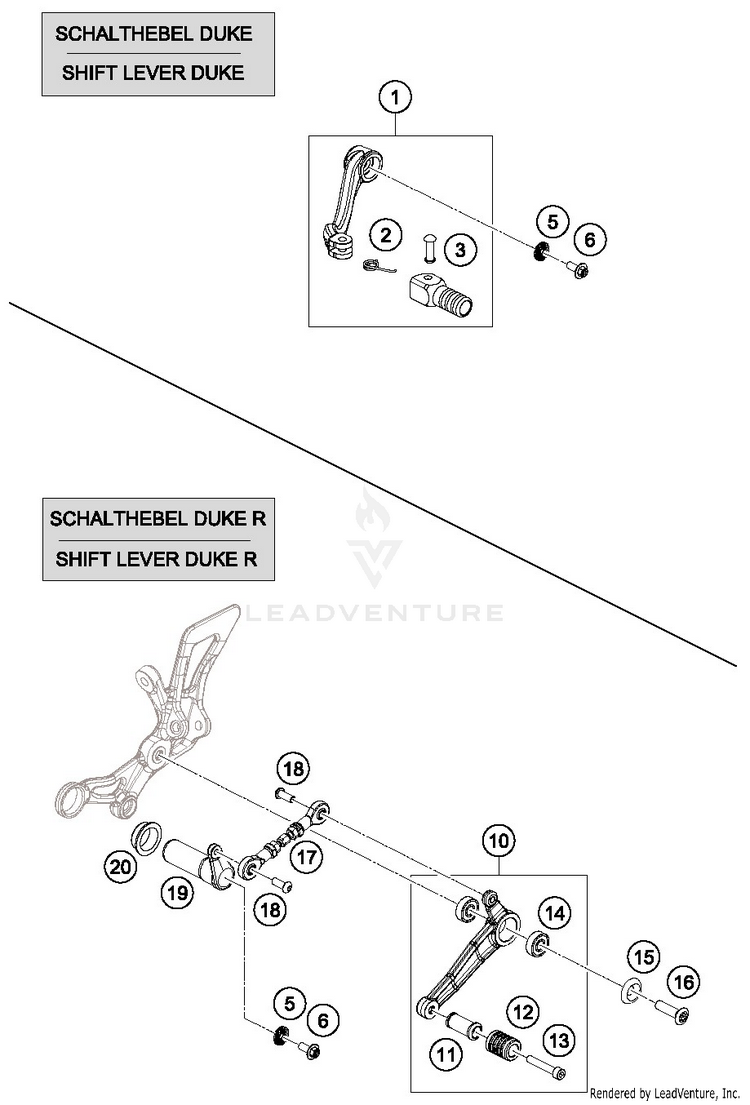

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175034031000SHIFT LEVER CPL. 07$103.94$88.354 In-Stock
275034032000SHIFTING LEVER SPRING$3.99$3.394 In-Stock
354634031050BOLT 6X25 FOR SHIFT LEVER$9.23$7.8510+ In-Stock
550233041500PAIR NORDLOCK WASHER M6$4.99$4.2410+ In-Stock
60024060156SHH collar screw M6x15 TX30$2.99$2.5410+ In-Stock
107603403104433SSHIFTING LEVER CPL.$107.79$91.62Usually ships in 7-10 business days
1169034032100GEAR LEVER$14.62$12.44Usually ships in 7-10 business days
1261034035000RUBBER FOR SHIFT LEVER 05$8.13$6.9110+ In-Stock
130912060453AH SCREW DIN0912-M 6X45$2.99$2.5410+ In-Stock
140625006087GROOVED BALL BEAR. 608 2RS C3$25.18$21.4010+ In-Stock
1558303061100SPECIAL WASHER ALU 8X24 MM ELO$7.14$6.0710+ In-Stock
160019080306SCOUNTER-SUNK SCREW ISA45 M8X30-$2.0810+ In-Stock
1776034036000SHIFT LEVER$71.49$60.77Usually ships in 7-10 business days
180738060161FLAT HEAD SCREW ISO7380 M6X16$1.99$1.6910+ In-Stock
197600317000033LEVER ARM$70.28$59.74Usually ships in 7-10 business days
2076034038000SLIDE BEAR. IGUS JFM-222532-08$11.76$10.00Usually ships in 7-10 business days
