2016 KTM 690 Duke Water Pump OEM Parts Diagram

Submodel 690 DUKE WHITE Engine - 2016

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

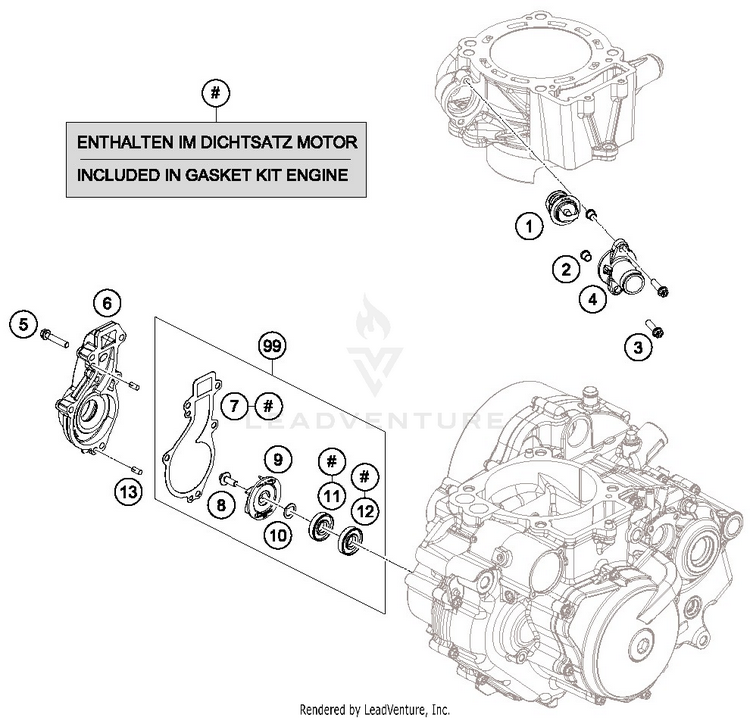

Water Pump

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175035017000THERMOSTAT 07$33.65$28.6010+ In-Stock
260040027050SUPPORTING SLEEVE 03$7.47$6.3510+ In-Stock
30025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
475035016000THERMOSTATCOVER 07$7.69$6.543 In-Stock
50025060306HH collar screw M6x30 TX30 | TX30$3.99$3.3910+ In-Stock
67503505210033WATERPUMP COVER 10$118.90$101.06Usually ships in 7-10 business days
775035053000WATER PUMP COVER GASKET 07$8.13$6.9110+ In-Stock
80024060156HH collar screw M6x15 TX30 | TX30$3.99$3.3910+ In-Stock
975035055000WATER PUMP ROTOR 07$4.99$4.247 In-Stock
1060035055150double-d washer 16x1 SST$1.99$1.6910+ In-Stock
110760123071SHAFT SEAL RING. 12X30X7 VITON$9.12$7.7510+ In-Stock
120760123073SHAFT SEAL RING 12X30X7 PTFE$14.73$12.5210+ In-Stock
130474050100GROOVED PIN DIN1474 5X10$2.99$2.5410+ In-Stock
9975035055010WATER PUMP REP. KIT 690 | As Required$50.04$42.533 In-Stock
