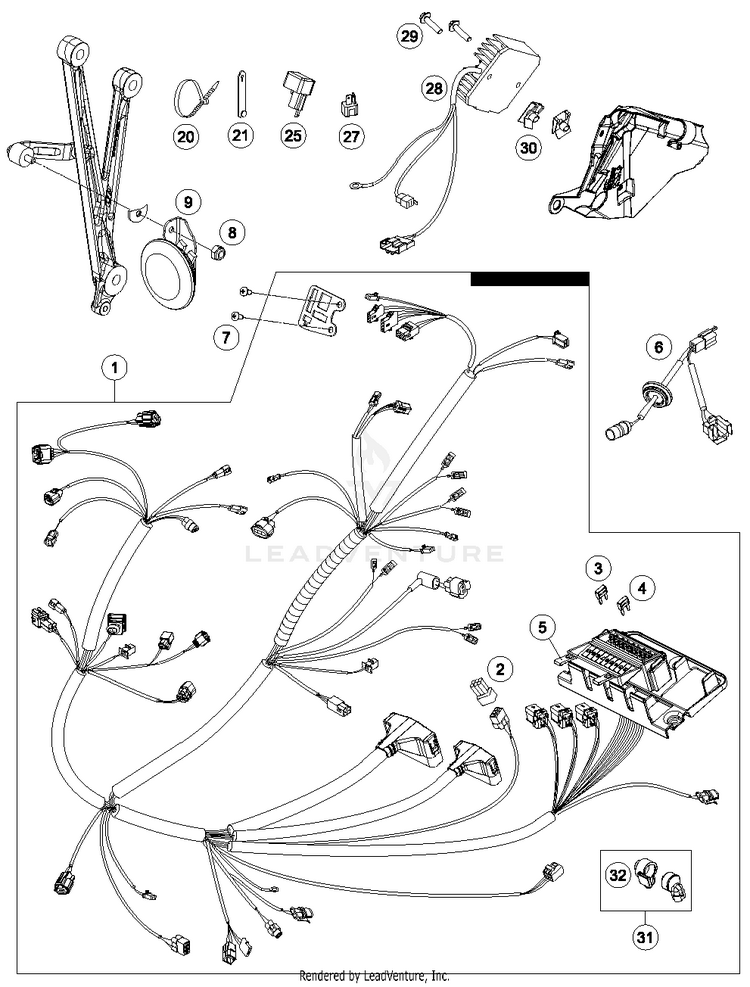

2016 KTM 690 ENDURO Wiring Harness OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	76511275000	WIRING HARNESS	$1,033.33	$878.33	Usually ships in 7-10 business days
2	000700000BH	SPARE CONNECTOR BH 6-PINS	$26.06	$22.15	Usually ships in 7-10 business days
3	75011088010	FUSE 10A 07 \| As Required	$4.99	$4.24	10+ In-Stock
4	75011088015	FUSE 15A 07 \| As Required	$4.99	$4.24	10+ In-Stock
5	75011087050	RUBBER CASING FOR FUSE BOX	$13.63	$11.59	1 In-Stock
6	76511079000	WIRING HARNESS HEAD LIGHT	$25.62	$21.81	Usually ships in 7-10 business days
7	0081050121	EJOT PT screw K50x12	$2.99	$2.54	10+ In-Stock
8	0985060003	SELF LOCK. NUT DIN0985-M 6	$2.99	$2.54	10+ In-Stock
9	61611060033 (replaces part # 76511060000)	Direct current horn complete	$47.73	$40.57	Usually ships in 7-10 business days
20	44011076305	CABLE TIE 300/4,8MM BLACK \| As Required	$2.99	$2.54	10+ In-Stock
20	44011076200	CABLE TIE 200/3,6MM BLACK \| As Required	$1.99	$1.88	10+ In-Stock
20	44011076140	CABLE TIE 140/2,5MM BLACK \| As Required	$1.99	$1.69	10+ In-Stock
21	60011093045	RUBBER CABLE TIE 45MM 03 \| As Required	$3.99	$3.39	10+ In-Stock
25	76511030000	FLASHER UNIT	$27.27	$23.18	10+ In-Stock
27	58411096100	DIODE S3H-15 97	$11.54	$9.81	Usually ships in 7-10 business days
28	60011034100	VOLTAGE REGULATOR	$188.64	$160.34	7 In-Stock
29	0024060256	HH COLLAR SCREW M6X25 TX30 \| TX30	$3.99	$3.39	10+ In-Stock
30	54603048100	clip nut M6	$4.99	$4.24	10+ In-Stock
31	76511010000	MAP-SELECT-SWITCH	$100.42	$85.36	2 In-Stock
32	76511010050	RUBBER HOLDER F. MAP-SEL-SWIT.	$12.31	$10.46	Usually ships in 7-10 business days
