2016 KTM RC 390 Clutch Cover OEM Parts Diagram

Submodel 390 RC WHITE ABS Engine - 2016

Shop Aftermarket Parts

CLUTCH COVER

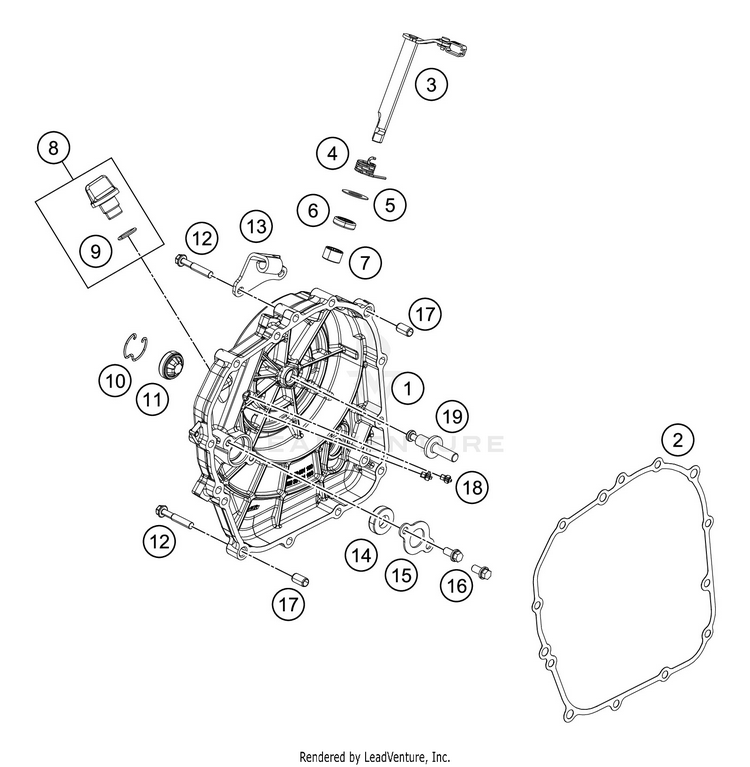

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190230001144CLUTCH COVER WITH PLUG$113.41$96.40Usually ships in 7-10 business days
290230027000GASKET CLUTCH COVER$6.15$5.2310+ In-Stock
390232048133CLUTCH RELEASE LEVER CPL.$14.54$12.36Usually ships in 7-10 business days
490232048003SPRING F. RELEASE LEVER$2.99$2.69Usually ships in 7-10 business days
590132048005WASHER 12,5X24X0,8MM$1.99$1.79Usually ships in 7-10 business days
690132051000OIL SEAL RING$3.99$3.59Usually ships in 7-10 business days
790132050000needle bearing$6.15$5.54Usually ships in 7-10 business days
890130020000OIL PLUG CPL.$1.99$1.691 In-Stock
9J770013824O-RING 13,8X2,4$1.99$1.695 In-Stock
1090130095001

(replaces part #
90630095000)

WIRE CIRCLIP 28X1,5$2.99$2.69Usually ships in 7-10 business days
1190130095100OIL GAUGE GLASS$6.92$6.23Usually ships in 7-10 business days
12J025060350FLANGED BOLT M6X35 WS8$1.99$1.79Usually ships in 7-10 business days
1390230059100BRACKET CLUTCH CABLE$6.81$6.13Usually ships in 7-10 business days
1490134127000Oill seal ring$6.15$5.54Usually ships in 7-10 business days
1590230060001STOPPER SHAFT SEAL RING$2.99$2.69Usually ships in 7-10 business days
1690130078001FLANGED BOLT 6X12$1.99$1.79Usually ships in 7-10 business days
1790130024000PIN DOWEL 8X6,4X14MM$1.99$1.79Usually ships in 7-10 business days
1890130064000OIL JET$7.14$6.43Usually ships in 7-10 business days
1990232048004PULL ROD$9.12$8.21Usually ships in 7-10 business days
