2016 KTM RC 390 Throttle Body OEM Parts Diagram

Submodel 390 RC CUP Engine - 2016

Shop Aftermarket Parts

THROTTLE BODY

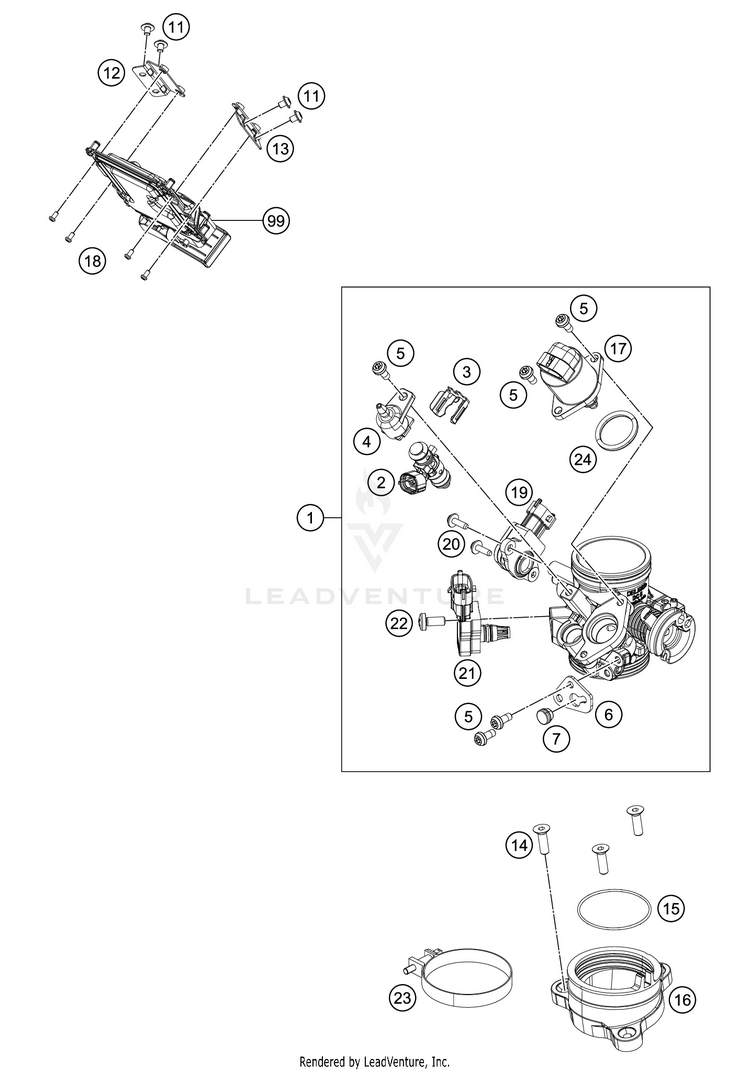

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190241001000THROTTLE BODY CPL.$563.96$479.37Usually ships in 7-10 business days
290241023000FUEL INJECTOR$161.23$137.05Usually ships in 7-10 business days
390141001001INJECTOR CLIP$3.99$3.59Usually ships in 7-10 business days
490141023004CONNECTOR FUEL RAIL$3.99$3.59Usually ships in 7-10 business days
590141023005SPECIAL SCREW M5X12$1.99$1.79Usually ships in 7-10 business days
690141023002CABLE SUPPORT$3.99$3.59Usually ships in 7-10 business days
790141023003GROMMET$1.99$1.79Usually ships in 7-10 business days
1190508006004SOCKET HEAD BOLT M6X1X8$1.99$1.79Usually ships in 7-10 business days
1290514030000BRACKET ECU R/S$2.99$2.69Usually ships in 7-10 business days
1390514029000BRACKET ECU L/S$2.99$2.69Usually ships in 7-10 business days
14J991060203SCOUNTERSUNK SCREW M6X20$1.99$1.79Usually ships in 7-10 business days
15J770053024O-RING 53X2,4$4.99$4.49Usually ships in 7-10 business days
1690241002000PIPE INTAKE$34.53$29.35Usually ships in 7-10 business days
1790641072000IDLE ADJUSTER$94.48$80.31Usually ships in 7-10 business days
18J005040081FLAT HEAD SCREW M4X8 PH$1.99$1.79Usually ships in 7-10 business days
1990141070000THROTTLE POSITION SENSOR$92.85$78.92Usually ships in 7-10 business days
2090141070001SPECIAL SCREW M4X13$1.99$1.79Usually ships in 7-10 business days
2190141071000TMAP-SENSOR$93.16$79.19Usually ships in 7-10 business days
2290141071001SPECIAL SCREW M6X14$6.37$5.73Usually ships in 7-10 business days
2390241002010hose clamp$6.46$5.81Usually ships in 7-10 business days
2490141072001O-RING$3.99$3.59Usually ships in 7-10 business days
9990141031100ECU RAW PART$615.22$522.94Usually ships in 7-10 business days
