2016 KTM RC 390 Wiring Harness OEM Parts Diagram

Submodel 390 RC WHITE ABS Engine - 2016

Shop Aftermarket Parts

Wiring Harness

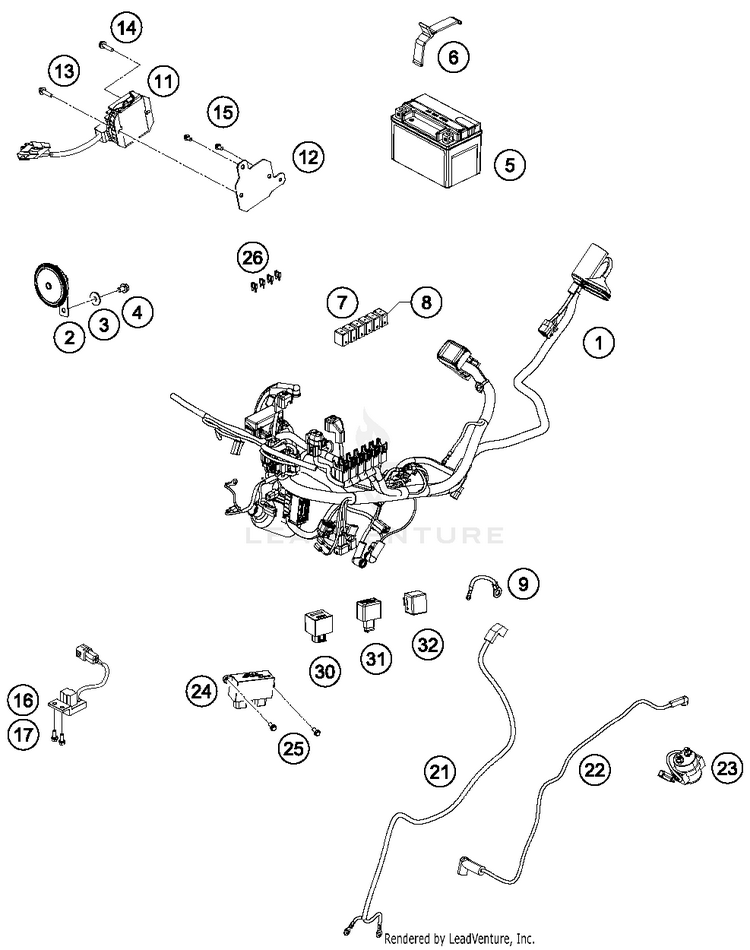

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190511575000HARNESS MAIN 390 FF USA$952.04$809.23Usually ships in 7-10 business days
290111060100HORN 82 DIA$28.17$23.94Usually ships in 7-10 business days
390111060010WASHER PLAIN 8,4X25X2$1.99$1.79Usually ships in 7-10 business days
4J025080123HH COLLAR SCREW M8X12 SW12$1.99$1.79Usually ships in 7-10 business days
590611053000BATTERY 12V/8AH$170.24$144.703 In-Stock
690511054001BRACKET RUBBER FOR BATTERY$3.99$3.59Usually ships in 7-10 business days
790611057000relay (interlock)$30.25$25.71Usually ships in 7-10 business days
890611157000RELAY (AUX1DIODE)$28.92$24.58Usually ships in 7-10 business days
990211097000earth wire$11.43$9.73Usually ships in 7-10 business days
1190511034000voltage regulator$175.55$149.22Usually ships in 7-10 business days
1290511134010BRACKET VOLTAGE REGULATOR$6.81$6.13Usually ships in 7-10 business days
13J025060303FLANGED BOLT M6X30 WS10$1.99$1.79Usually ships in 7-10 business days
14J025060253bolt flanged M6X25$1.99$1.79Usually ships in 7-10 business days
15J025060109HH-COLLAR SCREW M6X10 SW8$1.99$1.79Usually ships in 7-10 business days
1690141088000ROLL OVER SENSOR$39.38$33.54Usually ships in 7-10 business days
17J011050133HH COLLAR SCREW M5X13 SW8$1.99$1.79Usually ships in 7-10 business days
2190511097000GROUND CABLE$12.42$10.57Usually ships in 7-10 business days
2290811059000STARTER CABLE$18.69$15.92Usually ships in 7-10 business days
2390111058000STARTER RELAY$31.87$27.091 In-Stock
2490611035000INTEGRAL UNIT$93.05$79.09Usually ships in 7-10 business days
25J025060143HH COLLAR SCREW M6X14 SW8$1.99$1.79Usually ships in 7-10 business days
2675011088005FUSE MINI 5A$8.13$6.919 In-Stock
2675011088030FUSE 30A$3.99$3.59Usually ships in 7-10 business days
2675011088015FUSE 15A 07$4.99$4.2410+ In-Stock
2675011088010FUSE 10A 07$4.99$4.2410+ In-Stock
3090539010000IGNITION UNIT$57.08$48.52Usually ships in 7-10 business days
3190511530000FLASHER FOR BULB TYPE BLINKER$13.50$11.48Usually ships in 7-10 business days
3290511021000CONTROL UNIT HEAD LIGHT$43.77$37.20Usually ships in 7-10 business days
