2017 KTM 150 SX Kick Starter OEM Parts Diagram

Submodel 150 SX CHASSIS - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Kick Starter

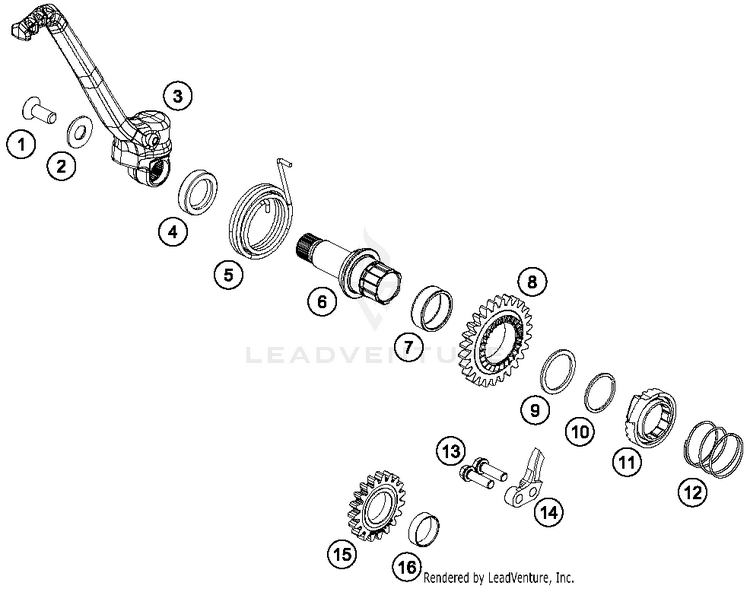

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10019080206SFLAT HEAD SCREW M. ISA45 M8X20$2.99$2.5410+ In-Stock
254633037000WASHER 8MM GALVANIZED$7.14$6.0710+ In-Stock
350433070044KICKSTARTER CPL.$150.36$127.8110+ In-Stock
40760193070SHAFT SEAL RING 19X30X7 B$6.59$5.6010+ In-Stock
550433054200

(replaces part #
50433054000)

Kick-starter spring$6.15$5.2310+ In-Stock
679233050000KICK STARTER SHAFT$104.60$88.914 In-Stock
70405252910NEEDLE BEAR K 25X29X10$10.44$8.8710+ In-Stock
850433051026KICK STARTER WHEEL 26T$84.69$71.994 In-Stock
954833044000STOP DISC 25X31X1,5$6.15$5.2310+ In-Stock
100417025000CIRCLIP SW25$3.99$3.3910+ In-Stock
1150433052000KICK STARTER RATCHET$60.93$51.7910+ In-Stock
1258033028000RATCHET GEAR SPRING 1,2 MM$2.99$2.5410+ In-Stock
130025060206HH collar screw M6x20 TX30 | TX30$3.99$3.3910+ In-Stock
1459033069000BUMP PART$15.61$13.277 In-Stock
1550433053019STARTER INTERMEDIATE GEAR 19T$63.79$54.225 In-Stock
1650433024050BUSHING IDLER GEAR$30.79$26.1710+ In-Stock
