2017 KTM 150 SX Shock Absorber Disassembled OEM Parts Diagram

Submodel 150 SX CHASSIS - 2017

Shop Aftermarket Parts

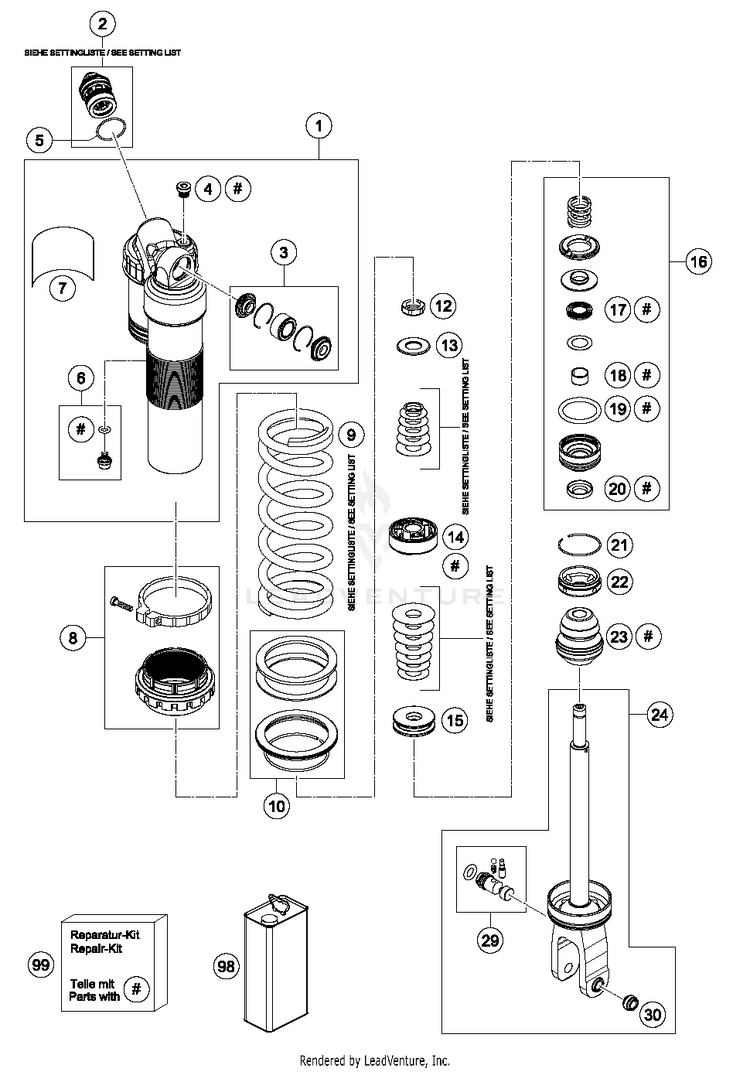

Shock Absorber Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
150181144S1MONOSHOCK UPPER PART CPL.$412.05$350.24Usually ships in 7-10 business days
250181101S13DCC LINK 2017 CPL. | As Required$122.73$104.32Usually ships in 7-10 business days
250181101S14DCC LINK 2017 CPL. | As Required$143.10$121.64Usually ships in 7-10 business days
250181101S6Compression cpl. | As Required$134.91$114.67Usually ships in 7-10 business days
250181101S11Compression cpl. | As Required$155.86$132.48Usually ships in 7-10 business days
250181101S15DCC LINK 2017 CPL. | As Required$122.73$104.32Usually ships in 7-10 business days
250181101S8Compression cpl. | As Required$134.91$114.67Usually ships in 7-10 business days
3R12025Ball joint bearing kit 12mm$44.49$37.8210+ In-Stock
450180095HS cylinder-head screw R1/8 l8$2.85$2.4210+ In-Stock
550180218O-ring 25x1,5 Viton70$2.41$2.0510+ In-Stock
636120151ST

(replaces part #
36120151S)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
752000146Sticker WP warning 55x92$11.76$10.004 In-Stock
850180991SSpring retainer M58,1x2 plastic cpl.$41.24$35.0510+ In-Stock
991210100S

(replaces part #
91210107S)

SPRING 260 45 N/MM | As Required$164.99$140.2410+ In-Stock
991210101S

(replaces part #
91210108S)

SPRING 260 48 N/MM | As Required$164.99$140.2410+ In-Stock
991210102S

(replaces part #
91210109S)

SPRING 260 51 N/MM | As Required$164.99$140.2410+ In-Stock
991210124S

(replaces part #
91210106S)

SPRING 260 42 N/MM | As Required$164.99$140.246 In-Stock
991210123S

(replaces part #
91210112S)

SPRING 260 39 N/MM | As Required$164.99$140.248 In-Stock
991210128S

(replaces part #
91210113S)

Spring 255 36 N/MM | As Required$164.99$140.249 In-Stock
1050180824SSPRING PLATE SET$44.98$38.2310+ In-Stock
1250181207

(replaces part #
50181112)

Locking nut M12x1 h9 WAF19$9.23$7.8510+ In-Stock
1350181092Rebound disc 12x34x2 h0$25.07$21.3110+ In-Stock
1450181333S

(replaces part #
50181030E)

Assembly Piston ICHU Sparepart$60.38$51.3210+ In-Stock
1550181091Rebound disc 12x43x12,5 h8$30.24$25.70Usually ships in 7-10 business days
1650180603S7

(replaces part #
50180603SA)

DichtungstrSger 50x28 cpl.$74.24$63.1010+ In-Stock
1750180605ST

(replaces part #
50180605S)

Seal ring cpl. 18x30x5$25.95$22.0610+ In-Stock
1846180119Guide bushing 18x20x12$8.99$7.6410+ In-Stock
1950180103O-ring 41x5 NBR70$1.20$1.0210+ In-Stock
2050180606Dirt scarper NOK 18mm black$9.23$7.8510+ In-Stock
2150180126Round-wire snap ring 53x1,75-$1.3010+ In-Stock
2250180626Cover 50x6 h16$53.89$45.81Usually ships in 7-10 business days
2350181100Rubber pad 18x58x46 black$22.76$19.3510+ In-Stock
2450181148S1MONOSHOCK BOTTOM PART CPL.$388.95$330.61Usually ships in 7-10 business days
2950181094SADJUSTING SCREW M8X0,5 CPL.$17.37$14.766 In-Stock
3046811205Bush M10x12/15/13x9,5$7.91$6.7210+ In-Stock
9850180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
99R12029T

(replaces part #
R12029)

REP. KIT 5018 LINK 2016 US/HQV | 2016, As Required$108.89$92.5610+ In-Stock
