2017 KTM 250 SX Handlebar, Controls OEM Parts Diagram

Submodel 250 SX CHASSIS - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Handlebar, Controls

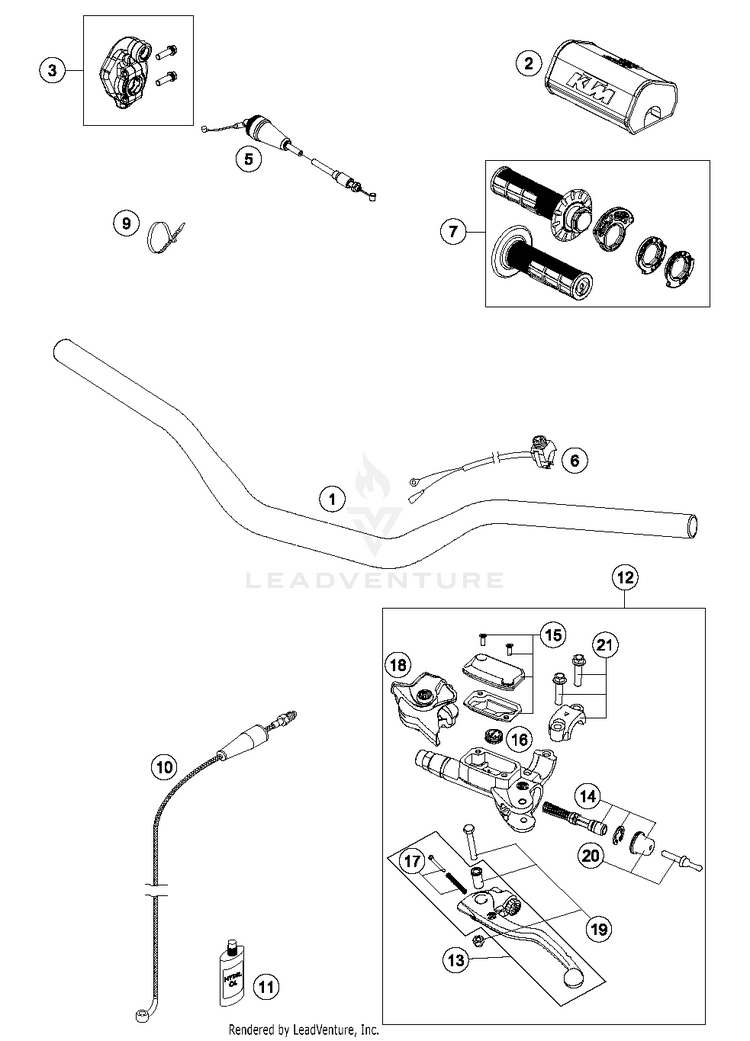

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17900200100030HANDLEBAR D=28MM$178.63$151.8410+ In-Stock
279102002044

(replaces part #
79002002000)

Handlebar pad cmpl.$41.24$35.0510+ In-Stock
350402010044

(replaces part #
50402010025)

Throttle Control Casing cpl.$41.46$35.2410+ In-Stock
550502091000

(replaces part #
50402091000)

Throttle Cable 2T$70.39$59.8310+ In-Stock
650311089200SHORT CIRCUIT BUTTON 02$44.21$37.5810+ In-Stock
779002021200

(replaces part #
79002021100)

Grip set$36.99$31.4410+ In-Stock
944011076200CABLE TIE 200/3,6MM BLACK$1.99$1.8810+ In-Stock
1079232063000CLUTCH PIPE$132.21$112.3810+ In-Stock
1150302036200OIL FOR HYD. CLUTCH 100 ML$23.42$19.9110+ In-Stock
1254802030144MASTER CYLINDER CPL.$283.02$240.5710+ In-Stock
1354802031000CLUTCH LEVER CPL. BREMBO 06$45.99$39.0910+ In-Stock
1454802032000REP. KIT PISTON 06$58.73$49.9210+ In-Stock
155480200310030COVER HYD. CLUTCH CPL. 2014 | 2014$43.88$37.3010+ In-Stock
1654802051000VALVE$22.54$19.1610+ In-Stock
1754802052000BOLT KPL.$22.99$19.5410+ In-Stock
1854802037000PROTECTION CAP 06$24.63$20.9410+ In-Stock
1954802038100LEVER SCREW CPL. 06$29.99$25.4910+ In-Stock
2054802046000PUSH ROD CPL.$16.99$15.0910+ In-Stock
2154802005100CLAMP CPL. 06$30.35$25.8010+ In-Stock
