2017 KTM 50 SX MINI Shock Absorber Disassembled OEM Parts Diagram

Submodel 50 SX MINI ENGINE - 2017

Shop Aftermarket Parts

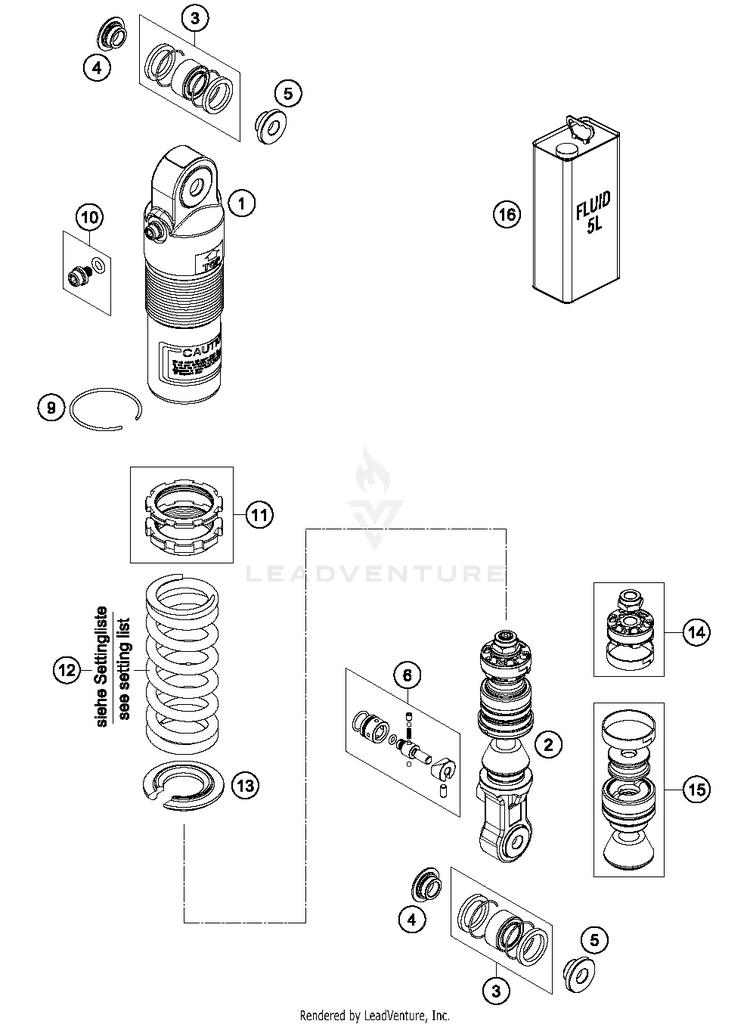

Shock Absorber Disassembled

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
136120861S1MONOSHOCK UPPER PART CPL.WHITE$264.98$225.23Usually ships in 7-10 business days
236120781S15MONOSHOCK LOW.PART CPL.SX MINI$521.75$443.49Usually ships in 7-10 business days
3R12012T

(replaces part #
R12012)

Ball joint bearing kit top 12mm$42.01$35.7110+ In-Stock
446180008Distance bush 10x15/18/24,5x8,5$7.95$7.16Usually ships in 7-10 business days
546180010Distance bush 10x15/18/24,5x10,5$7.95$6.7610+ In-Stock
646180522S1TAP ADJ. REBOUND$58.95$50.11Usually ships in 7-10 business days
940540015Round-wire snap ring 38x1,5$3.62$3.087 In-Stock
1036120151ST

(replaces part #
36120151S)

PLUG SCREW M5X6 CPL.$4.83$4.1110+ In-Stock
1136120418SADJUSTING NUT CPL.$41.35$35.158 In-Stock
1293010222SSHOCK SPRING L= 120 75 N/MM WHITE$169.50$144.08Usually ships in 7-10 business days
1293010221SSHOCK SPRING 65N/MM - 120MM | As Required$183.03$155.58Usually ships in 7-10 business days
1293010223SSHOCK SPRING 85N/MM - 120MM | As Required$183.03$155.58Not Shipping
1336120461Spring retainer 27x53x3$53.89$45.81Usually ships in 7-10 business days
14R310MONOSHOCK PISTON SET SX MINI$56.64$48.14Usually ships in 7-10 business days
15R311T

(replaces part #
R311)

MONOSHOCK REP. KIT SX MINI$130.89$111.26Usually ships in 7-10 business days
1650180751S1SHOCK ABSORBER FLUID 5 LT$175.99$149.596 In-Stock
