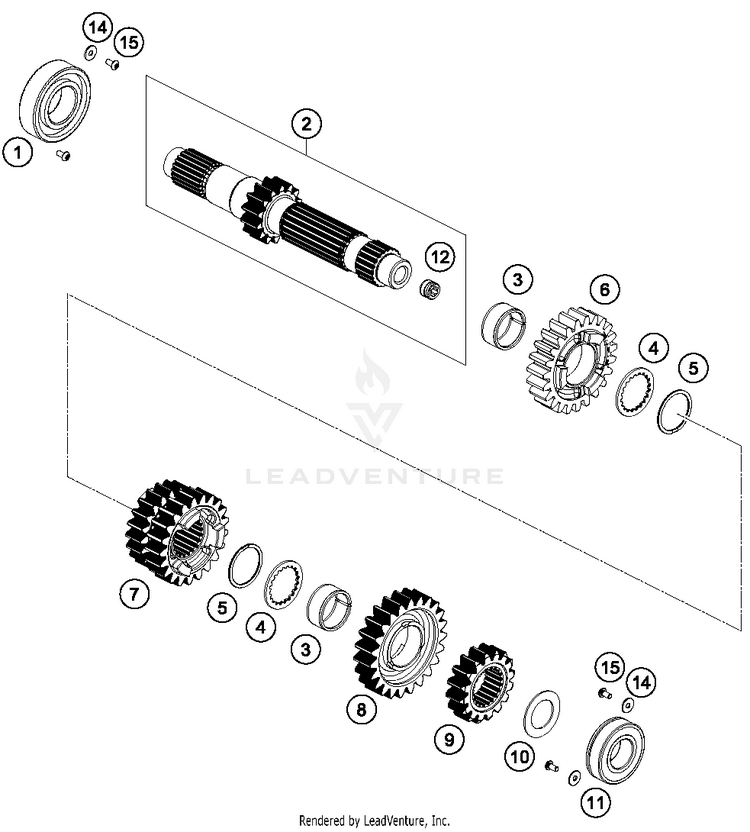

2017 KTM 690 Duke Transmission I - Main Shaft OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	06252858161	BALL BEARING 58/28 C4 N	$22.98	$19.53	Usually ships in 7-10 business days
2	76633101000 (replaces part # 76633001000)	main shaft compl.	$117.03	$99.48	Usually ships in 7-10 business days
3	0405242813G	NEEDLE BEAR.K 24X28X13 DIVIDED	$21.77	$18.50	Usually ships in 7-10 business days
4	76633040000	STOP DISK 24.6X33X1.5	$13.85	$11.77	Usually ships in 7-10 business days
5	0471027000	CIRCLIP XDNS-27	$24.30	$20.66	Usually ships in 7-10 business days
6	76633005000	IDLER GEAR 5. GEAR	$126.38	$107.42	Usually ships in 7-10 business days
7	76633003000	SLIDING GEAR 3./4. GEAR	$154.86	$131.63	Usually ships in 7-10 business days
8	76633006000	IDLER GEAR 6. GEAR	$111.08	$94.42	Usually ships in 7-10 business days
9	76633102000 (replaces part # 76633002000)	solid gear 2nd gear	$24.52	$20.88	Usually ships in 7-10 business days
10	59033080000	SHIM 20X32X1	$2.41	$2.05	10+ In-Stock
11	0625060044	BALL BEARING 6004 DDUN C4	$15.28	$12.99	4 In-Stock
12	77333001160	GUIDE BUSHING	$6.15	$5.54	Usually ships in 7-10 business days
14	0021050003	washer DIN 9021 A - 5.3	$1.99	$1.69	10+ In-Stock
15	0738050082 (replaces part # 073800501002)	Flat Head Screw ISO7380 M5x8 A2 TX25 \| TX25	$1.99	$1.79	Usually ships in 7-10 business days
