2017 KTM 690 ENDURO Evaporative Canister OEM Parts Diagram

Submodel 690 ENDURO R ENGINE - 2017

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Evaporative Canister

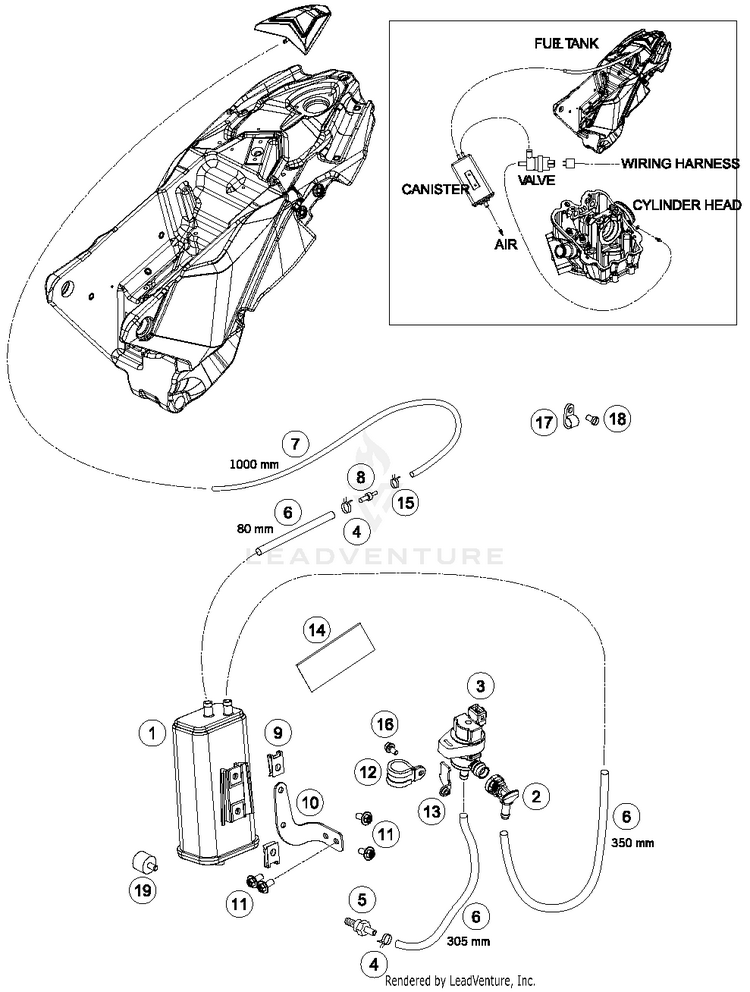

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
175015001100EVAPORATIVE CANISTER 09$72.70$61.80Usually ships in 7-10 business days
261115016000FITTING PIECE NQV2 NW7 90°$14.95$12.71Usually ships in 7-10 business days
361115015000VALVE FOR CARBON CANISTER 07$75.23$63.95Usually ships in 7-10 business days
458007017000YDNAC CLAMP 10101 (10,4MM)$3.99$3.3910+ In-Stock
560036023100VACUUM CONECTION M6/0,5MM$33.21$28.23Usually ships in 7-10 business days
678015019000HOSE EPA D=6/10 L=2000MM | As Required$73.69$62.64Usually ships in 7-10 business days
778015021000HOSE EPA D=4/8 L=2000MM | As Required$58.73$49.92Usually ships in 7-10 business days
875015023000REDUCTION CONNECTION GRS6-4$6.59$5.93Usually ships in 7-10 business days
954603048100clip nut M6$4.99$4.2410+ In-Stock
1076515202000BRACKET EVAPORATE KANISTER$33.43$28.42Usually ships in 7-10 business days
110024060136HH collar screw M6x13 TX30 | TX30$3.99$3.3910+ In-Stock
1259007439000CLAMP RSGU 18/15 03$6.81$6.13Usually ships in 7-10 business days
1376515032000RETAINING PLATE VALVE EC$13.74$11.68Usually ships in 7-10 business days
1459003001099METAMOLL 90X45X3MM 03$2.99$2.5410+ In-Stock
1545031005000YDNAC-CLAMP FUEL HOSE (8MM)$1.99$1.6910+ In-Stock
160025050106HH collar screw M5x10 TX30$1.99$1.6910+ In-Stock
1757013070100PVC-CLAMP 7,9 MM HEYCO 3355$2.99$2.69Usually ships in 7-10 business days
180084040083CYL.HEAD SCREW DIN0084-M 4X8 A$1.99$1.6910+ In-Stock
1943205062100silentbloc 20x15-M6x10-(1)$16.38$13.9210+ In-Stock
