2018 KTM 300 XC Exhaust System OEM Parts Diagram

Submodel 300 XC CHASSIS - 2018

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST SYSTEM

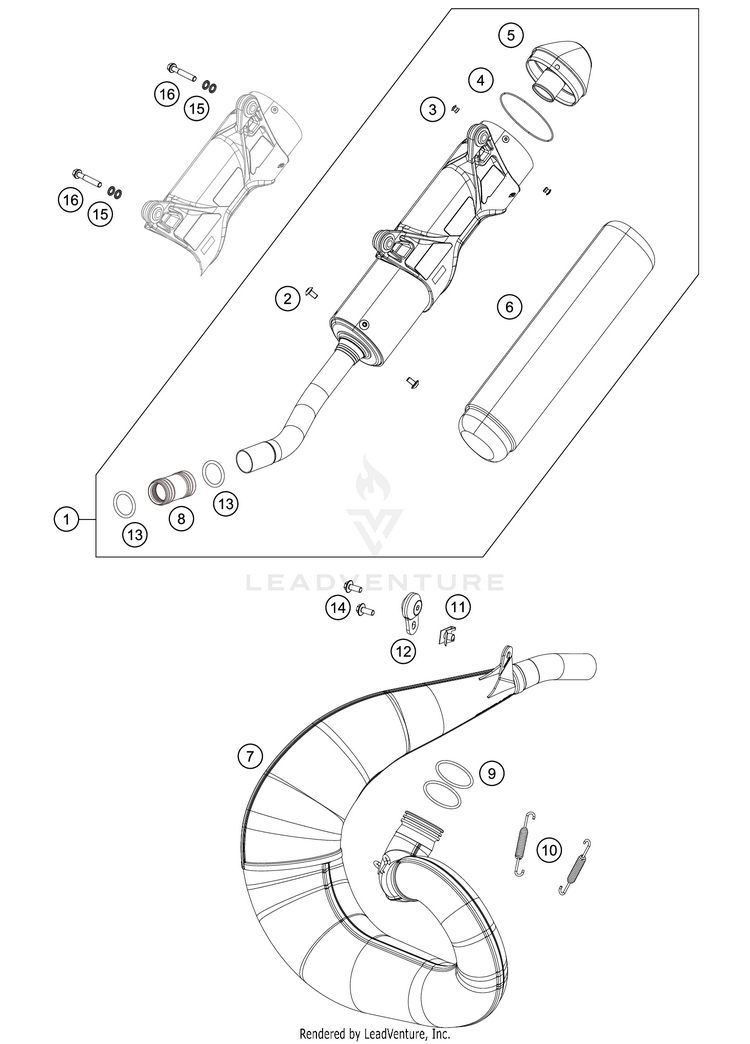

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155405079000SILENCER$487.84$414.66Usually ships in 7-10 business days
278105081010SCREW TORX M5X10$2.99$2.5410+ In-Stock
30011480800DUMMY RIVET 4,8X 8 NIRO$3.99$3.3910+ In-Stock
40770740015O-RING 74,00X1,50 FKM 75SH$4.99$4.2410+ In-Stock
554805083260ENDCAP CPL.$99.10$84.24Usually ships in 7-10 business days
655405078283ROCKWOOL PREFORMED 283G$55.87$47.498 In-Stock
755405007000EXHAUST MANIFOLD$669.01$568.66Usually ships in 7-10 business days
855405057000exhaust rubber$12.79$10.8710+ In-Stock
90770440030O-RING 44,00X3,00 VITON$4.99$4.2410+ In-Stock
10A46005016000

(replaces part #
50305016000)

Tension spring L=65mm$5.38$4.5710+ In-Stock
1154603048100clip nut M6$4.99$4.2410+ In-Stock
1250305012000SWINGELEMENT FOR EXHAUST PIPE$23.42$19.9110+ In-Stock
1355405058000hose spring$3.99$3.3910+ In-Stock
140024060156HH collar screw M6x15 TX30$3.99$3.3910+ In-Stock
1550233041000PAIR OF WASHERS M 6 NORDLOCK$4.99$4.2410+ In-Stock
160025060356HH collar screw M6x35 TX30$3.99$3.3910+ In-Stock
