2018 KTM 300 XC Tank, Seat, Cover OEM Parts Diagram

Submodel 300 XC ENGINE - 2018

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TANK, SEAT, COVER

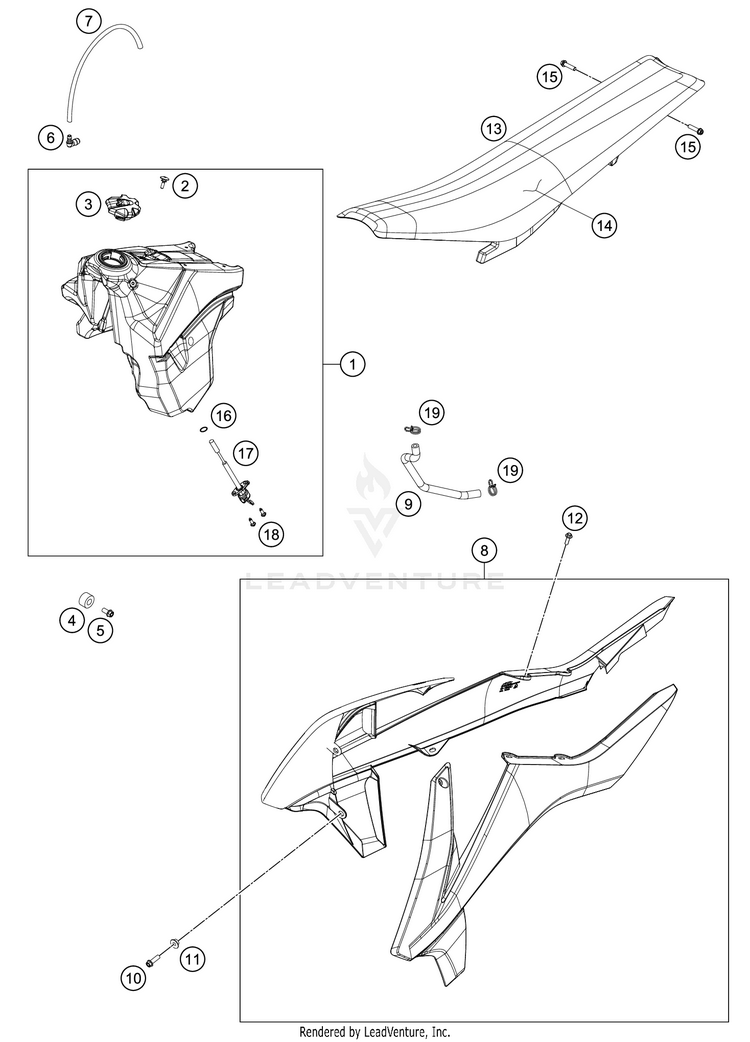

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15560701303399FUEL TANK CPL. EXC 17$352.10$299.2810+ In-Stock
279107011000

(replaces part #
50307011000)

Seat holder screw$3.99$3.3910+ In-Stock
37810700804404

(replaces part #
78107008044X4)

Tank plug cpl. 14$34.20$29.0710+ In-Stock
450307014000TANK ROLLER 12X26X12 '98$12.97$11.0210+ In-Stock
50025060126HH collar screw M6x12 TX30$3.99$3.3910+ In-Stock
651030022000ANGLE PIECE 90 DEGREE M10X1$6.15$5.2310+ In-Stock
778007100270

(replaces part #
78007000270)

Vent hose 5.6 x 10 x 270$3.99$3.3910+ In-Stock
879008054000EBFSpoiler Kit SX 2018$267.40$227.2910+ In-Stock
955407016000FUEL PREFORMED HOSE$19.90$16.9210+ In-Stock
100025060166HH collar screw M6x16 TX30$2.99$2.5410+ In-Stock
1179608152000

(replaces part #
79608052000)

Collar bushing 6x11x16x5áMM$2.99$2.5410+ In-Stock
120017060206SCREW F. PLASTIC K60X20AL SW6$3.99$3.3910+ In-Stock
1379007040400SEAT SX 17$192.05$163.246 In-Stock
1479007040450SEAT COVER SX 2017$82.49$70.126 In-Stock
150025060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
160770130023O-RING 13,00X2,30$4.99$4.2410+ In-Stock
1754807004000GAS COCK ON/OFF/RES 03$38.49$32.7210+ In-Stock
180017060205SCREW FOR PLASTIC K60X20 SW6$2.99$2.9210+ In-Stock
1958031005000CLAMP YDNAC 10128 12MM$3.99$3.3910+ In-Stock
