2019 KTM 250 XC-W (Fuel Injected) Instruments / Lock System OEM Parts Diagram

Submodel 250 XC-W TPI CHASSIS - 2019

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INSTRUMENTS / LOCK SYSTEM

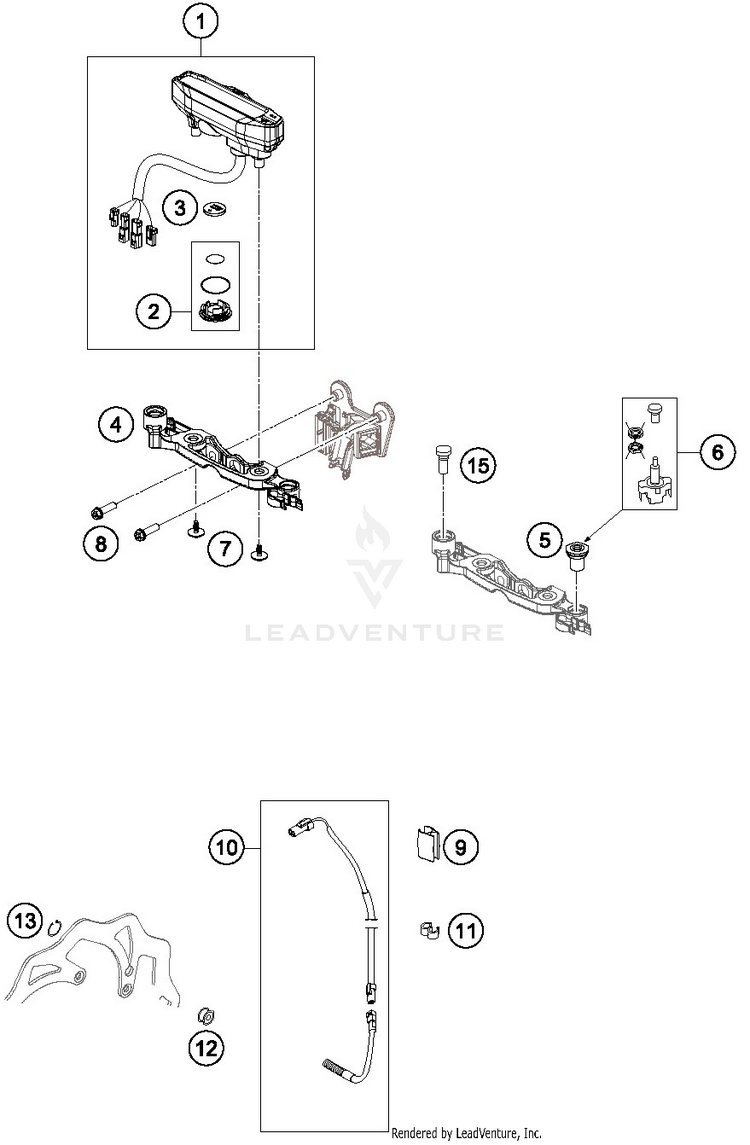

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
177714069600

(replaces part #
77714069400)

Speedometer digital km/h f. 21''$299.19$254.3110+ In-Stock
277714069010BATTERY COVER F. SPEEDOMETER$38.71$32.904 In-Stock
358314068000BATTERY F. SPEEDOM. M.A.E. 02$11.54$9.8110+ In-Stock
455614060000Speed indicator mount$12.97$11.0210+ In-Stock
554814060050SPEC. NUT F. PULL SWITCH WS=17$6.48$5.5110+ In-Stock
655011599000PULL SWITCH LOOSE$27.16$23.0910+ In-Stock
70081645121EJOT DELTA PT SCREW 45X12-Z$1.99$1.6910+ In-Stock
80024060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
954813026000CABLE SUPPORT 10/6MM 06$2.99$2.5410+ In-Stock
1054814068100CABLE FOR DIGITAL SPEEDOM. 06$92.83$78.9110+ In-Stock
1160111094000CLIP 5/7 MM 06$3.99$3.3910+ In-Stock
1254814069050MAGNET FOR DIGITAL SPEEDOM. 03$23.75$20.1910+ In-Stock
130471009104CIRCLIP DIN0471- 9X1 INOX$2.99$2.5410+ In-Stock
1555638063000Oil Indicator$36.73$31.2210+ In-Stock
