2019 KTM 350 EXC-F Instruments / Lock System OEM Parts Diagram

Submodel 350 EXC-F CHASSIS - 2019

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INSTRUMENTS / LOCK SYSTEM

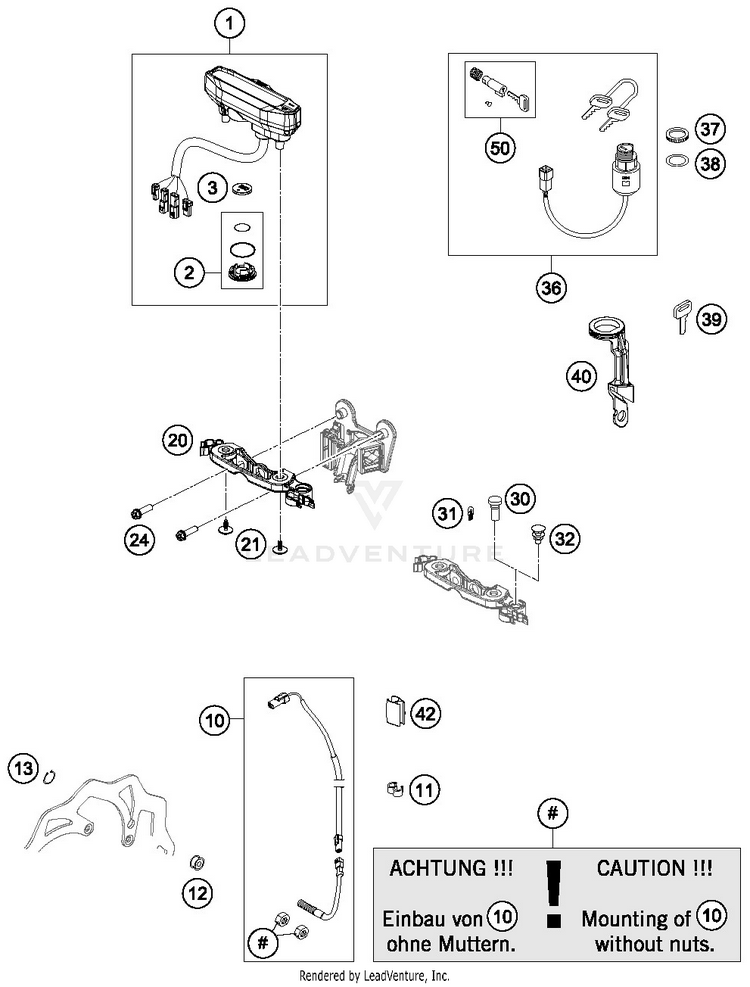

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
177714069600

(replaces part #
77714069400)

Speedometer digital km/h f. 21'' | REPROGRAMMABLE: KM/H - MPH$299.19$254.3110+ In-Stock
277714069010BATTERY COVER F. SPEEDOMETER$38.71$32.904 In-Stock
358314068000BATTERY F. SPEEDOM. M.A.E. 02$11.54$9.8110+ In-Stock
1054814068100CABLE FOR DIGITAL SPEEDOM. 06$92.83$78.9110+ In-Stock
1160111094000CLIP 5/7 MM 06$3.99$3.3910+ In-Stock
1254814069050MAGNET FOR DIGITAL SPEEDOM. 03$23.75$20.1910+ In-Stock
130471009104CIRCLIP DIN0471- 9X1 INOX$2.99$2.5410+ In-Stock
2077714060000SPEEDOMETER BRACKET EXC/XCW 14$16.16$13.7410+ In-Stock
210081645121EJOT DELTA PT SCREW 45X12-Z$1.99$1.6910+ In-Stock
240024060206HH collar screw M6x20 TX30$3.99$3.3910+ In-Stock
3058011024300FLASHER INDICAT.LIGHT GREEN'98$7.91$6.7210+ In-Stock
3149111425200BULB 12V 2,3W (W2X4,6D)$2.99$2.5410+ In-Stock
3250210086000COVERING CAP SFL16$3.99$3.3910+ In-Stock
3678011065200

(replaces part #
78011065100)

Ignition and steering lock$72.26$69.1010+ In-Stock
3750311066050IGNITION LOCK NUT M24X1$7.36$6.2610+ In-Stock
3858411066450WASHER F. IGNITION LOCK 03$6.37$5.4110+ In-Stock
3940011166200KEY BLANK BLACK ''T'' GRIP$10.33$8.7810+ In-Stock
4079611065050IGNITION LOCK BRACKET$9.78$8.3110+ In-Stock
4254813026000CABLE SUPPORT 10/6MM 06$2.99$2.5410+ In-Stock
5078003035100

(replaces part #
78003035000)

Steering lock$24.63$20.948 In-Stock
