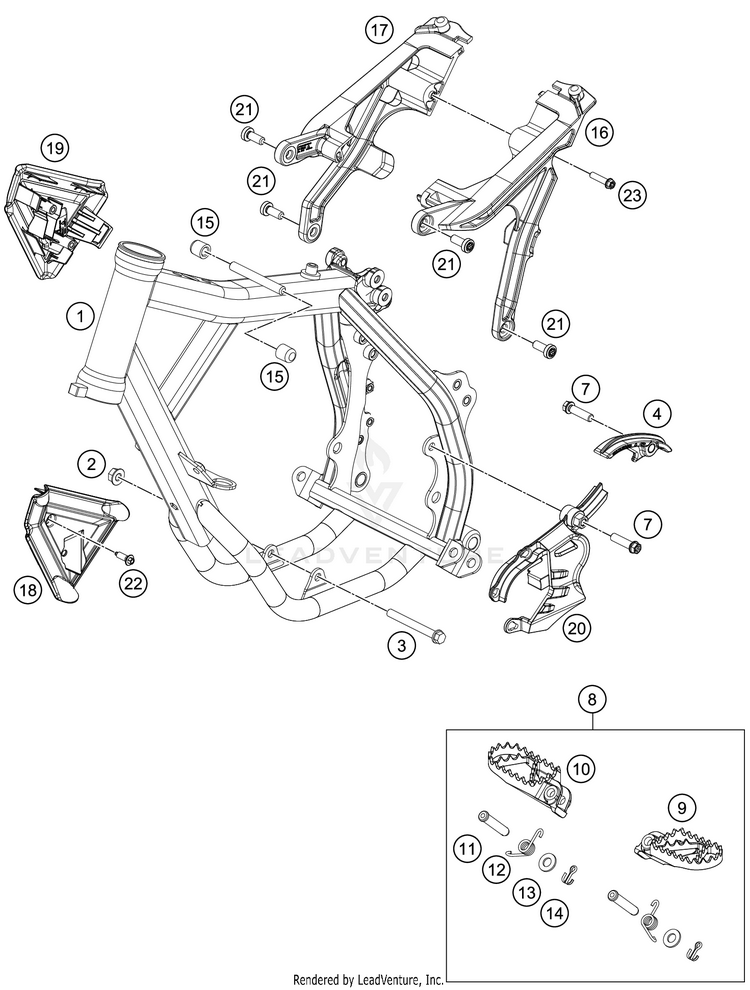

2021 KTM SX-E 5 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	45403001000EB	Frame 454T3	$1,378.51	$1,244.80	Usually ships in 7-10 business days
2	54310086200	SELF LOCKING NUT M8 10.9	$3.99	$3.39	10+ In-Stock
3	01665080806	Hexagonal bolt EN 1665-M8x80-10.9	$1.99	$1.69	10+ In-Stock
4	45303053000	Chain slider bottom	$11.87	$10.09	10+ In-Stock
7	0025080306	HH collar screw M8x30	$3.62	$3.08	10+ In-Stock
8	47103040033	FOOTREST CPL. 14	$129.57	$110.13	5 In-Stock
9	47103040000	FOOTREST L/S	$51.58	$43.84	9 In-Stock
10	47103041000	FOOTREST R/S	$50.26	$42.72	10+ In-Stock
11	54803044000	PIN FOR FOOT PED 51.5X9.8 MM	$14.62	$12.43	10+ In-Stock
12	54603041000	FOOTREST SPRING L/S & R/S	$6.15	$5.23	10+ In-Stock
13	0125100003	washer DIN 125 A 10.5	$2.99	$2.54	10+ In-Stock
14	0094032250 (replaces part # 0094032253)	PIN DIN 0094-3.2X25 NIRO	-	$2.08	10+ In-Stock
15	76006014000	rubber grommet	$1.99	$1.69	7 In-Stock
16	45403002010	Subframe left	$41.13	$37.71	Usually ships in 7-10 business days
17	45403002020	Subframe right	$41.13	$37.71	Usually ships in 7-10 business days
18	45403083000	Frame cover left	$13.30	$11.30	Usually ships in 7-10 business days
19	45403084000	Frame cover right	$14.07	$11.96	Usually ships in 7-10 business days
20	45403096000	Failure protection	$23.53	$20.00	4 In-Stock
21	0035080206S	SHCS M8x20 TX45	$6.26	$5.32	10+ In-Stock
22	0017060255	EJOT PT SCREW K60X25-Z SW6	$3.99	$3.39	10+ In-Stock
23	0025060256	HH collar screw M6x25 TX30	$3.99	$3.39	10+ In-Stock
