2023 KTM 1290 Super Adventure S Instruments / Lock System OEM Parts Diagram

Submodel 1290 SUPER ADVENTURE S, grey CHASSIS - 2023

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INSTRUMENTS / LOCK SYSTEM

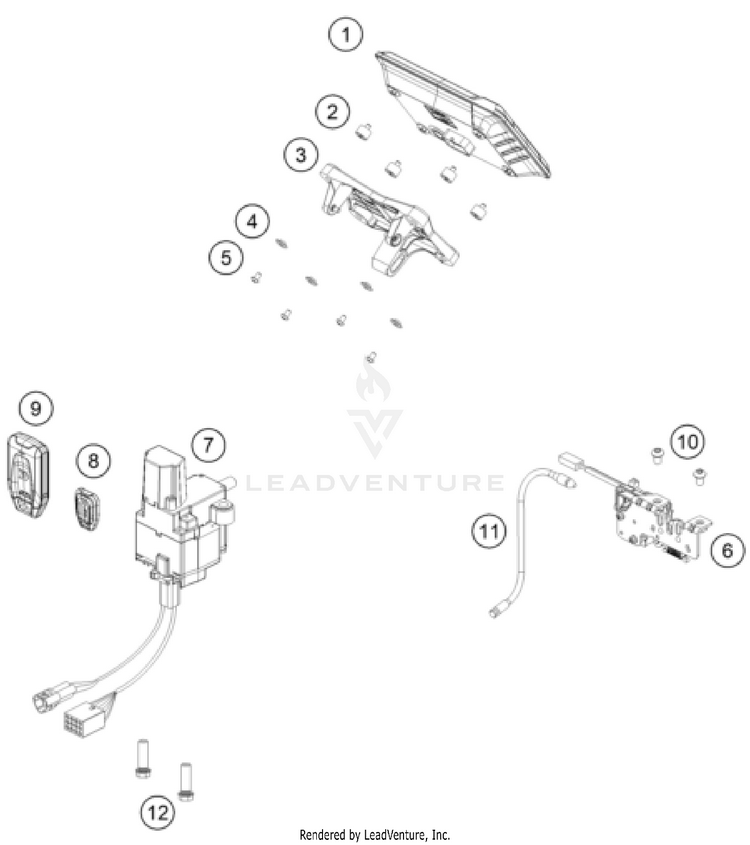

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
161914069000Combination instrument$1,305.36$1,109.56Usually ships in 7-10 business days
261514069010Absorbing element$10.66$9.06Usually ships in 7-10 business days
361914062000Instrument support$45.31$38.51Usually ships in 7-10 business days
461614069020Tachometer support bush$4.99$4.49Usually ships in 7-10 business days
50738050082Flat Head Screw ISO7380 M5x8 A2 TX25$1.99$1.79Usually ships in 7-10 business days
661907050000Seat lock electric$246.06$209.15Usually ships in 7-10 business days
761911266100Ignition lock KTM Race On 433áMHz$1,173.58$997.54Usually ships in 7-10 business days
861911067020passiv transponder Race-on KTM$127.15$108.08Usually ships in 7-10 business days
961911267000active transponder Race-on 433 MHz$516.22$438.79Usually ships in 7-10 business days
100738060101COU.SUNK SCR. AH ISO7380 M6X10$1.99$1.79Usually ships in 7-10 business days
1161907053040Rope, emergency release Passenger seat$37.17$31.59Usually ships in 7-10 business days
120025080256SHH COLLAR SCREW M8X25 TX40$3.62$3.0810+ In-Stock
