2023 KTM 150 XC-W (Fuel Injected) Cooling System OEM Parts Diagram

Submodel 150 / EXC / XC-W Engine - 2023

Shop Aftermarket Parts

TO VIEW KTM OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

COOLING SYSTEM

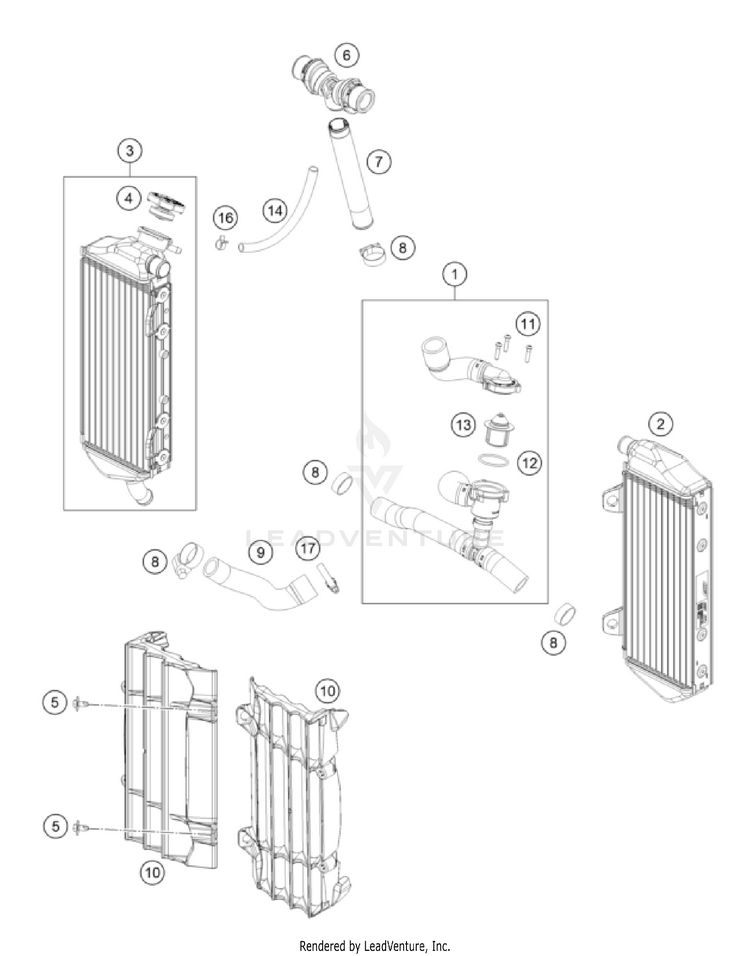

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
151735026033Radiator hose eng. thermos.$167.52$142.39Usually ships in 7-10 business days
250535007100Radiator, left 19$241.33$205.1310+ In-Stock
350535008100Radiator right$301.39$256.1810+ In-Stock
479035016000RADIATOR CAP 1,8 BAR$33.54$28.5110+ In-Stock
50900000601203

(replaces part #
0024060123)

HH ISR collar screw M6x12-10.9 ISA30$1.99$1.6910+ In-Stock
679135071044Y-hose cpl.$47.62$40.4810+ In-Stock
779135073000threaded bushing$15.61$13.2710+ In-Stock
80310000902900Hose clip 18-29$2.99$2.5410+ In-Stock
950535027000preformed hose$19.02$16.1710+ In-Stock
107913503400030radiator protector le/ri black$21.00$17.8510+ In-Stock
110016040183SCREW FOR PLASTIC D=4X18$2.99$2.5410+ In-Stock
120770320020O-RING 32,00X2,00$2.99$2.5410+ In-Stock
1359435117100

(replaces part #
59435017000)

Thermostat 70á¦C$49.71$42.2510+ In-Stock
1450335030001PVC-HOSE 6X9$7.91$6.7210+ In-Stock
1659007017000CLAMP YDNAC 10096F (9,6MM)$2.99$2.5410+ In-Stock
170310000903200Hose clip 20-32$2.99$2.5410+ In-Stock
