1968 Yamaha DT1/1S/1CMX Muffler OEM Parts Diagram

Submodel DT1 - 1968

Shop Aftermarket Parts

MUFFLER

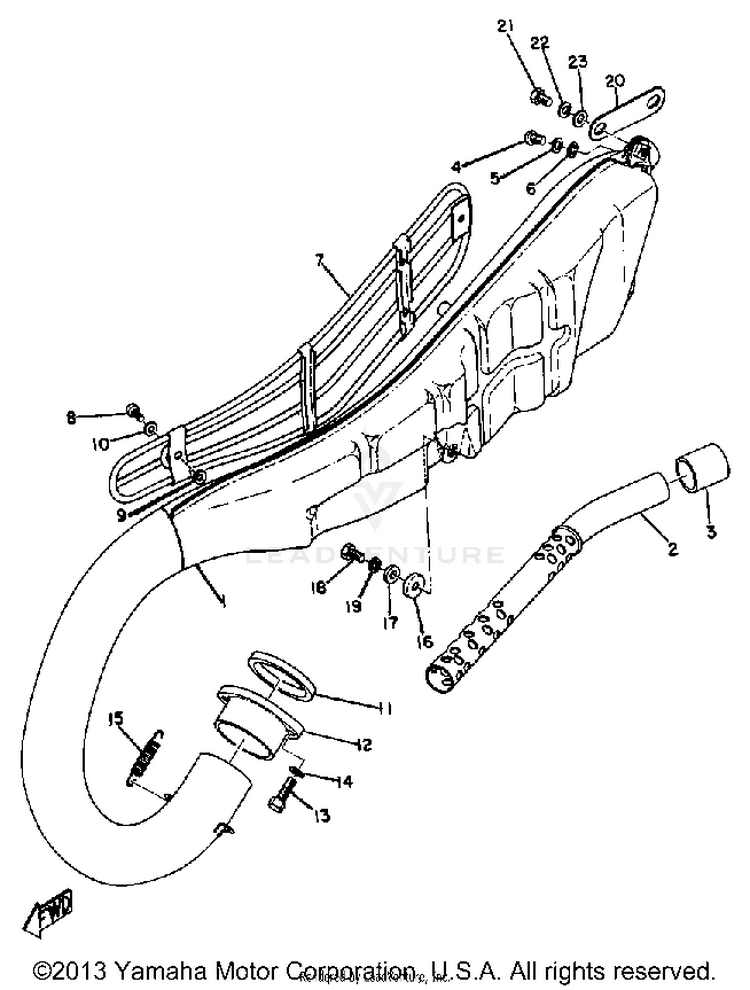

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-UNA-VAILA-BL-EIPULLY, ALTERNATOR 2 GROOVE$0.00$0.00Not Shipping
-97013-06030-00

(replaces part #
97313-06030-00)

BOLT$2.45$2.20Usually ships in 7-10 business days
1214-14752-00-00PIPE, OUTLET$10.28$8.43Usually ships in 7-10 business days
2214-14753-00-00SILENCER, EXHAUST$62.14$48.47Not Shipping
3214-14746-01-00PIPE, MUFFLER TAIL$2.90$2.61Not Shipping
498580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
692990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
7214-14718-00-00PROTECTOR, MUFF 1$87.54$68.28Not Shipping
898980-06012-00

(replaces part #
98903-06012-00)

SCREW, BIND$9.49$7.4010+ In-Stock
990202-05188-00

(replaces part #
90202-05005-00)

WASHER, PLATE$9.49$7.404 In-Stock
1090202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
11214-14613-09-00

(replaces part #
214-14613-00-00)

GASKET, EXHAUST PIPE$19.99$15.593 In-Stock
12214-14612-00-00NUT, RING$42.72$35.03Not Shipping
1397024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1590506-12029-00SPRING, TENSION$6.49$6.45
1690480-14329-00GROMMET$9.49$7.4010+ In-Stock
1790201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1897013-06012-00BOLT$6.49$5.0610+ In-Stock
1992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
20214-14771-00-00STAY, MUFFLER 1$13.98$11.46Not Shipping
2197013-06012-00BOLT$6.49$5.0610+ In-Stock
2292995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2392990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
