1970 Yamaha RT1 Tail Lamp (Rt1) OEM Parts Diagram

Submodel RT1 - 1970

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

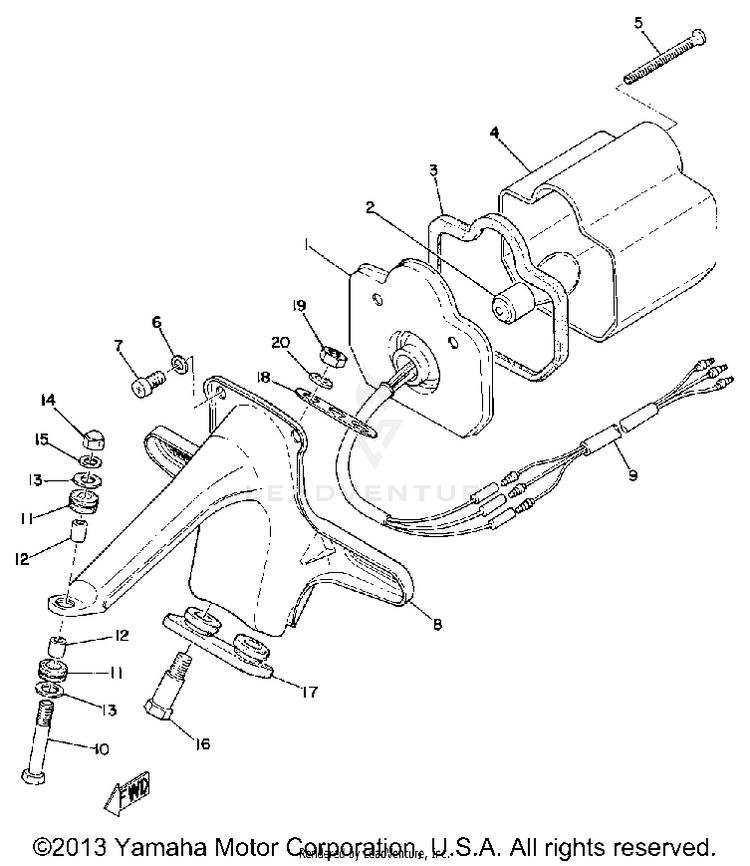

TAIL LAMP (RT1)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-214-84511-61-00BASE, TAILLIGHT$15.49$12.70Usually ships in 7-10 business days
1214-84510-61-00TAILLIGHT UNIT ASSEMBLY$49.99$40.99Usually ships in 7-10 business days
2122-84514-30-XX

(replaces part #
122-84514-30-00)

BULB 6V21CP(1154)$2.40$2.06Not Shipping
3168-84712-60-00SEAT, BASE$10.18$8.35Not Shipping
4168-84721-60-00LENS, TAILLIGHT$13.99$10.91Not Shipping
53AA-84331-00-00SCREW, RIM ADJUSTING$3.40$2.92Not Shipping
692995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
798580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
8214-84551-61-35BRACKET, LICENCE | SILVER$15.48$12.69Not Shipping
9214-84517-00-00CORD, TAILLIGHT$4.15$3.74Not Shipping
1097014-06035-00

(replaces part #
97013-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
1190480-14023-00GROMMET$8.49$6.6210+ In-Stock
1290387-06026-00

(replaces part #
90387-065L7-00)

COLLAR$9.49$7.409 In-Stock
1390201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1495380-06800-00

(replaces part #
95303-06800-00)

NUT, CROWN$9.49$7.4010+ In-Stock
1592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1690109-06017-00BOLT$11.49$8.963 In-Stock
17214-84553-01-00DAMPER$8.49$6.623 In-Stock
1890209-10114-00WASHER, SPEC''L SHAP$4.35$3.92Not Shipping
1995380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
2092990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
