FLASHER LAMP

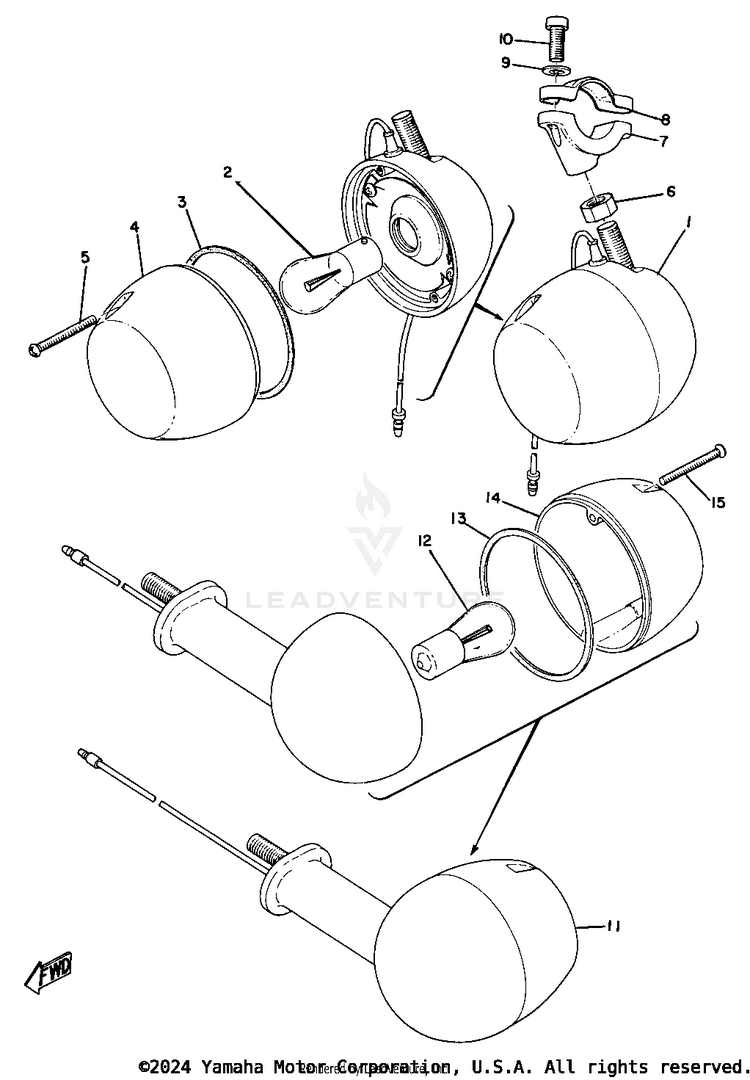

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1275-83310-60-93FRT FLSHR LITE ASSEMBLY (275-83 | AMBER$34.99$28.69Not Shipping
1261-83310-71-93FRT FLSHR LITE ASSEMBLY | AMBER$30.99$25.41Usually ships in 7-10 business days
2256-83311-70-XXBULB (12V-32CP)$2.35$2.02Not Shipping
2115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
3183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
4183-83312-70-00LENS, FLASHER | AMBER$22.99$18.85Usually ships in 7-10 business days
5183-83333-71-00SCREW, LENS FITTING$9.49$8.548 In-Stock
695333-08600-00NUT$3.80$3.4710+ In-Stock
7275-83318-00-00STAY, FLASHER 1$7.06$6.35Not Shipping
8275-83328-00-00STAY, FLASHER 2$9.08$8.17Not Shipping
992990-06300-00

(replaces part #
92901-06300-00)

WASHER, INTERNAL TOOTH$2.80$2.52Usually ships in 7-10 business days
1098507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
11261-83340-76-93R FLSHR LITE ASSEMBLY | RED$43.99$36.07Not Shipping
11251-83340-65-93R FLSHR LITE ASSEMBLY | RED$45.99$37.71Not Shipping
12256-83311-70-XXBULB (12V-32CP)$2.35$2.02Not Shipping
12115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
13183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
14211-83332-75-00LENS, FLASHER | RED$3.75$3.38Not Shipping
15183-83333-71-00SCREW, LENS FITTING$9.49$8.548 In-Stock
