1971 Yamaha RT1 Exhaust (Rt1, Rt1b) OEM Parts Diagram

Submodel RT1B - 1971

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

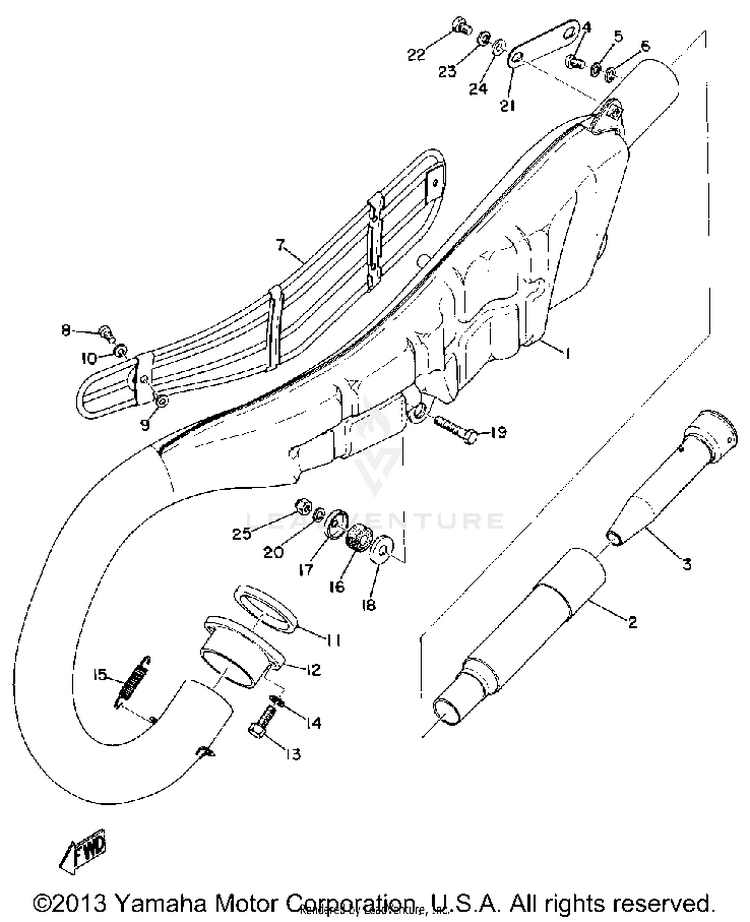

EXHAUST (RT1, RT1B)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-291-14752-30-00PIPE, OUTLET$38.56$30.08Not Shipping
1291-14610-30-00EXHAUST PIPE ASSEMBLY L$129.99$101.39Not Shipping
2275-14753-30-00SILENCER, EXHAUST$33.20$27.22Usually ships in 7-10 business days
3275-14752-30-00PIPE, OUTLET$22.32$18.30Not Shipping
498580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
592995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
692990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
7214-14718-00-00PROTECTOR, MUFF 1$87.54$68.28Not Shipping
898980-06012-00

(replaces part #
98903-06012-00)

SCREW, BIND$9.49$7.4010+ In-Stock
990202-05188-00

(replaces part #
90202-05005-00)

WASHER, PLATE$9.49$7.404 In-Stock
1090202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
11214-14613-09-00

(replaces part #
214-14613-00-00)

GASKET, EXHAUST PIPE$19.99$15.593 In-Stock
12214-14612-00-00NUT, RING$42.72$35.03Not Shipping
1397017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
1492995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1590506-12029-00SPRING, TENSION$6.49$6.45
1690480-14329-00GROMMET$9.49$7.4010+ In-Stock
17214-14793-01-00PLATE, MUFFLER$3.70$3.33Not Shipping
18214-14794-00-00PLATE, MUFFLER$2.85$2.56Usually ships in 7-10 business days
1997014-06035-00

(replaces part #
97013-06035-00)

BOLT, HEXAGON$2.65$2.288 In-Stock
2092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
21214-14771-00-00STAY, MUFFLER 1$13.98$11.46Not Shipping
2297D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
2392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2492990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
25214-21635-00-00NUT, REAR FENDER$2.17$1.95Usually ships in 7-10 business days
