1972 Yamaha AT2/2M Headlight At2 At3 OEM Parts Diagram

Submodel AT3_CT3 - AT2 - 1972

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

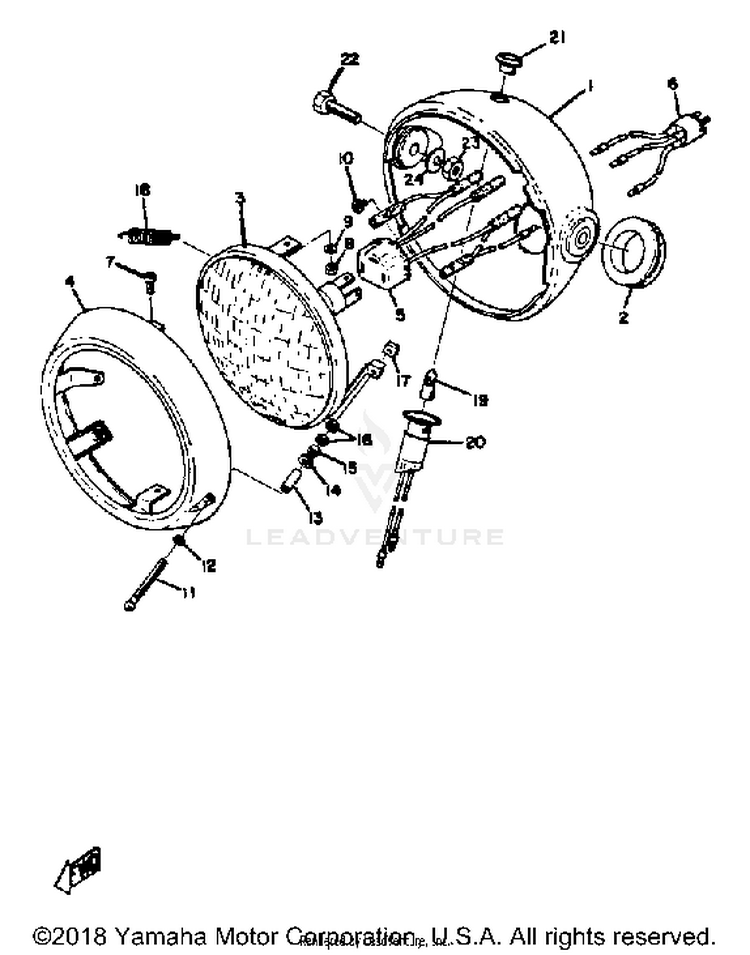

HEADLIGHT AT2 AT3

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1261-84330-60-F3BODY ASSEMBLY | BRIGADE BLUE$33.99$27.87Usually ships in 7-10 business days
1261-84330-60-71BODY ASSEMBLY | MANDARIN ORANGE$28.99$23.77Usually ships in 7-10 business days
2214-84153-60-00GROMMET, WIRE HARNESS$8.49$6.623 In-Stock
2256-84301-61-00PILOT LIGHT ASSEMBLY 1$19.49$15.98Not Shipping
3261-84320-61-00LENS ASSEMBLY$42.99$35.25Not Shipping
4261-84315-61-00RIM, HEADLIGHT$31.41$25.76Not Shipping
5261-84312-61-00SOCKET, CORD$18.70$15.33Not Shipping
6214-84159-61-00CORD, HEADLIGHT$7.49$6.74Not Shipping
798580-04010-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
895380-04700-00

(replaces part #
95301-04700-00)

NUT$8.49$7.644 In-Stock
992990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1090152-05005-00SCREW, COUNTERSUNK$4.65$4.002 In-Stock
11198-84331-60-00SCREW, RIM ADJUSTING$3.16$2.84Not Shipping
12233-84127-60-00WASHER, SPECIAL$4.00$3.442 In-Stock
13233-84133-60-00COLLAR, SCREW$3.10$2.79Not Shipping
1492990-04200-00WASHER, PLAIN$2.00$1.7210+ In-Stock
15132-84328-60-00SPACER$4.58$4.12Not Shipping
1695380-04700-00

(replaces part #
95301-04700-00)

NUT$8.49$7.644 In-Stock
17198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
18132-84335-60-00SPRING$3.05$2.74Not Shipping
19256-84347-00-00BULB$3.90$3.51Not Shipping
20256-84301-61-00PILOT LIGHT ASSEMBLY 1$19.49$15.98Not Shipping
21256-84357-61-00BODY, PILOT LIGHT$10.60$8.27Not Shipping
2297013-08025-00BOLT, KICK CRANK$9.49$7.406 In-Stock
2395333-08600-00NUT$3.80$3.4710+ In-Stock
2492990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
