1973 Yamaha DT3 Flasher Lamp OEM Parts Diagram

Submodel DT3 - 1973

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FLASHER LAMP

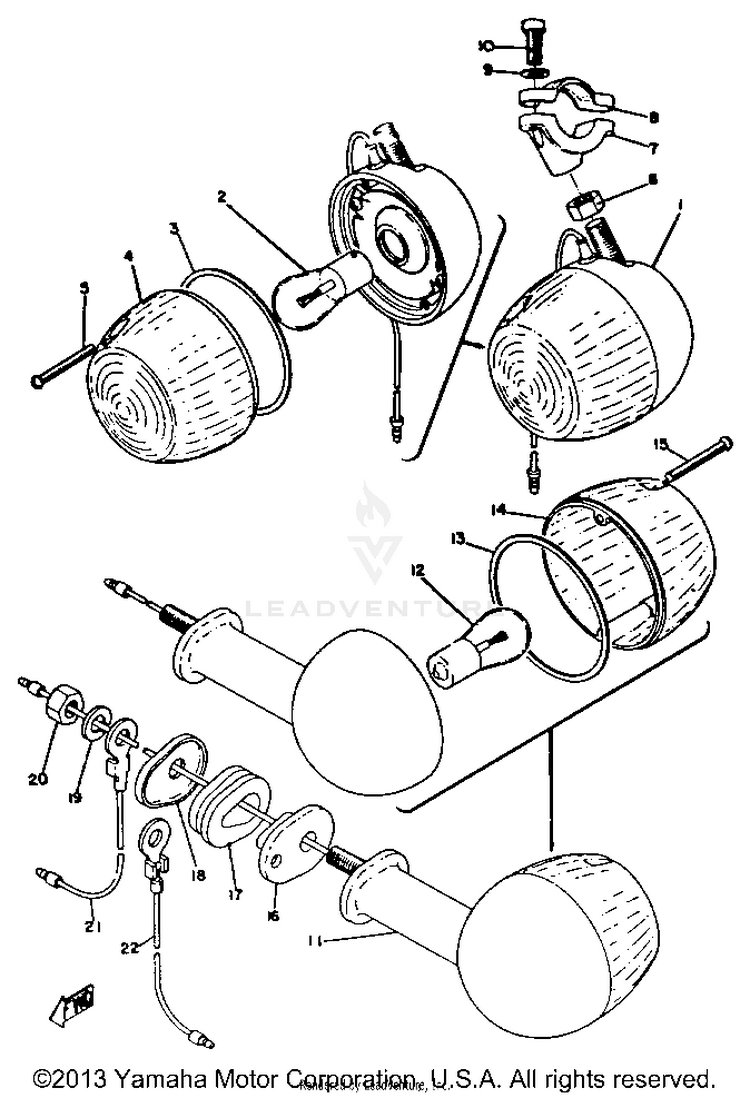

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-275-83330-65-93R FLSHR LITE ASSEMBLY | RED$37.99$31.15Not Shipping
1275-83310-60-93FRT FLSHR LITE ASSEMBLY (275-83 | AMBER$34.99$28.69Not Shipping
2115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
3183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
4183-83312-70-00LENS, FLASHER | AMBER$22.99$18.85Usually ships in 7-10 business days
5183-83333-71-00SCREW, LENS FITTING$9.49$8.548 In-Stock
695333-08600-00NUT$3.80$3.4710+ In-Stock
7275-83318-00-00STAY, FLASHER 1$7.06$6.35Not Shipping
8275-83328-00-00STAY, FLASHER 2$9.08$8.17Not Shipping
992990-06300-00

(replaces part #
92901-06300-00)

WASHER, INTERNAL TOOTH$2.80$2.52Usually ships in 7-10 business days
1098507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
11275-83340-65-93R FLSHR LITE ASSEMBLY | RED$55.99$43.67Not Shipping
12115-83311-60-XX

(replaces part #
115-83311-60-00)

BULB 6V21CP(1129)-$9.6010+ In-Stock
13183-83313-70-00GASKET, FLSHR LENS$9.49$8.54Usually ships in 7-10 business days
14211-83332-75-00LENS, FLASHER | RED$3.75$3.38Not Shipping
15183-83333-71-00SCREW, LENS FITTING$9.49$8.548 In-Stock
16256-83316-00-00COLLAR, FLASHER 1$14.20$11.64Not Shipping
17256-83321-00-00DAMPER, FLASHER 1$8.02$7.22Not Shipping
1890209-08028-00WASHER, SPEC''L SHAP$5.00$4.50Not Shipping
1992990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
2095333-08600-00NUT$3.80$3.4710+ In-Stock
21275-83336-00-00CORD$0.60$0.54Not Shipping
22275-83346-00-00CORD$3.36$3.02Not Shipping
