1974 Yamaha DT125 Kick Starter OEM Parts Diagram

Submodel DT125A - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

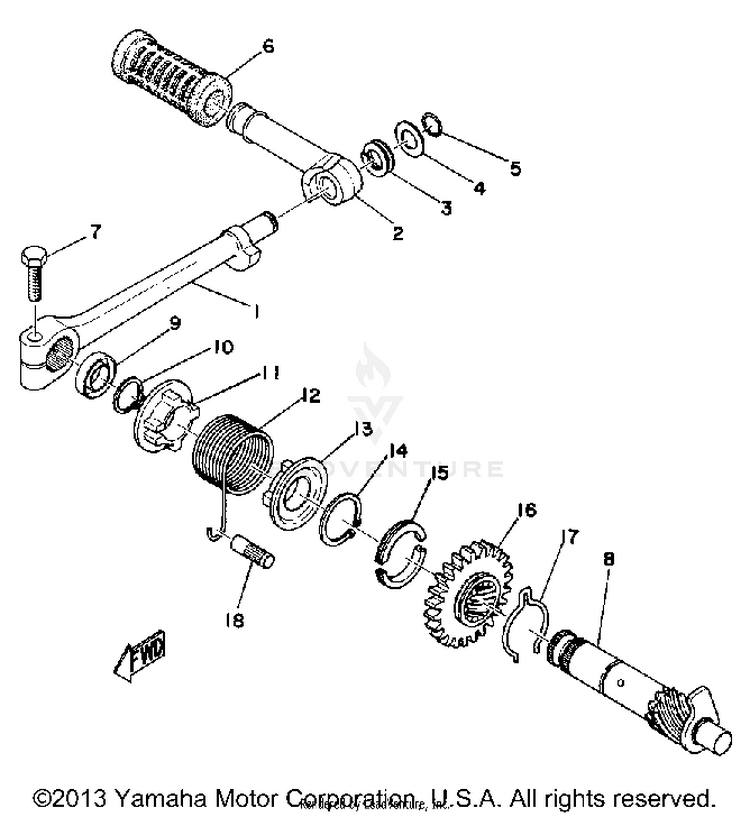

KICK STARTER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13V6-15620-00-00KICK CRANK ASSEMBLY$74.99$58.49Usually ships in 7-10 business days
2214-15612-01-00LEVER, KICK$12.52$10.27Not Shipping
390504-18009-00SPRING, COMPRESSION (214-1562$8.49$7.64Usually ships in 7-10 business days
4214-15616-00-00WASHER, KICK LEVER$7.49$6.74Usually ships in 7-10 business days
593440-11029-00CIRCLIP, OUTER$8.49$7.64Usually ships in 7-10 business days
6214-15618-00-00COVER, KICK LEVER$8.49$6.623 In-Stock
797013-08030-00

(replaces part #
97313-08030-00)

BOLT$3.80$3.2710+ In-Stock
8315-15660-01-00KICK AXLE ASSEMBLY$134.99$105.29Usually ships in 7-10 business days
993104-20007-00OIL SEAL, SO-TYPE$9.49$7.408 In-Stock
1099009-20400-00CIRCLIP$9.49$7.4010+ In-Stock
11214-15676-00-00COVER, SPRING$4.10$3.69Not Shipping
1290508-26136-00SPRING, TORSION$16.49$12.86
13214-15664-00-00GUIDE, SPRING$4.84$4.36Not Shipping
1499009-30400-00CIRCLIP$9.49$7.4010+ In-Stock
15248-15654-00-00HOLDER, KICK GEAR$7.49$6.74Usually ships in 7-10 business days
16315-15641-00-00GEAR, KICK (27T)$56.99$44.45Usually ships in 7-10 business days
1790468-26048-00CLIP$9.49$7.4010+ In-Stock
18248-15668-00-00STOPPER$8.49$6.6210+ In-Stock
