1974 Yamaha GT80/MX Shifter 1 OEM Parts Diagram

Submodel GTMXA - 1974

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

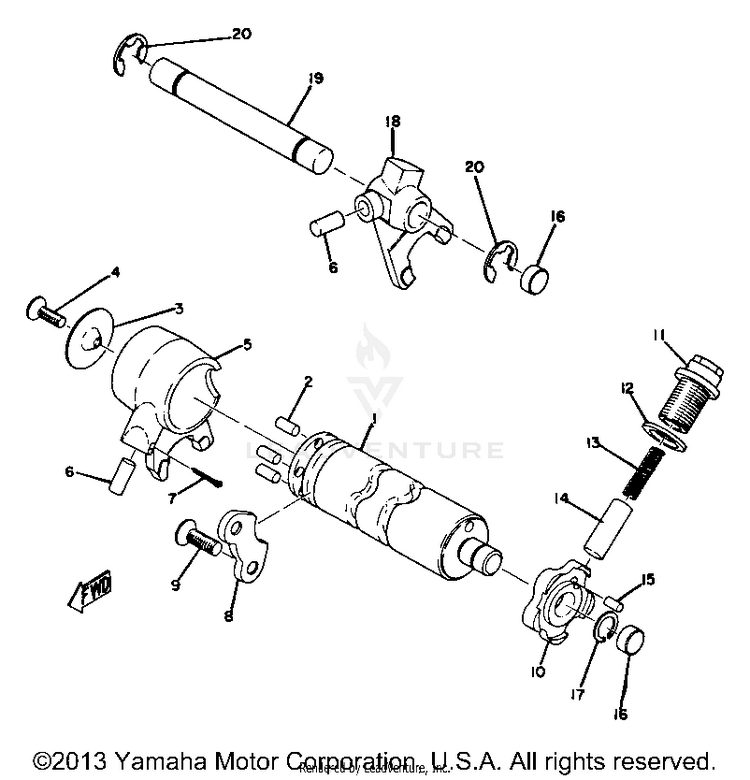

SHIFTER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14U1-18540-00-00

(replaces part #
367-18540-01-00)

SHIFT CAM ASSY$65.99$51.47Usually ships in 7-10 business days
293604-10011-00PIN, DOWEL$8.49$6.6210+ In-Stock
3214-18561-00-00PLATE, SIDE 1$3.45$3.10Usually ships in 7-10 business days
498707-05012-00

(replaces part #
98701-05012-00)

SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
5353-18511-01-00FORK, SHIFT 1$89.99$70.19Usually ships in 7-10 business days
693606-14081-00PIN, DOWEL$4.55$4.10Usually ships in 7-10 business days
791490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
8353-18562-00-00PLATE, STOPPER 2$16.99$13.93Usually ships in 7-10 business days
998707-06014-00

(replaces part #
98701-06014-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
10353-18141-01-00PLATE, STOPPER$13.58$11.14Usually ships in 7-10 business days
1190109-14485-00BOLT$8.49$6.622 In-Stock
124F4-14766-00-00

(replaces part #
137-15353-00-00)

GASKET, DRAIN$7.49$5.849 In-Stock
1390501-09292-00SPRING, COMPRESSION$5.99$5.39Not Shipping
14278-18547-02-00STOPPER, CAM$22.99$18.85Not Shipping
1593604-08071-00PIN, DOWEL$9.49$7.4010+ In-Stock
1690334-12009-00PLUG, STRAIGHT$5.99$5.39Usually ships in 7-10 business days
1793440-12026-00CIRCLIP, OUTER$3.30$2.97Usually ships in 7-10 business days
18353-18512-01-00FORK, SHIFT 2$33.99$27.87Usually ships in 7-10 business days
19214-18531-00-00BAR, SHIFT FORK GUIDE 1$14.99$12.29Usually ships in 7-10 business days
2099006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
